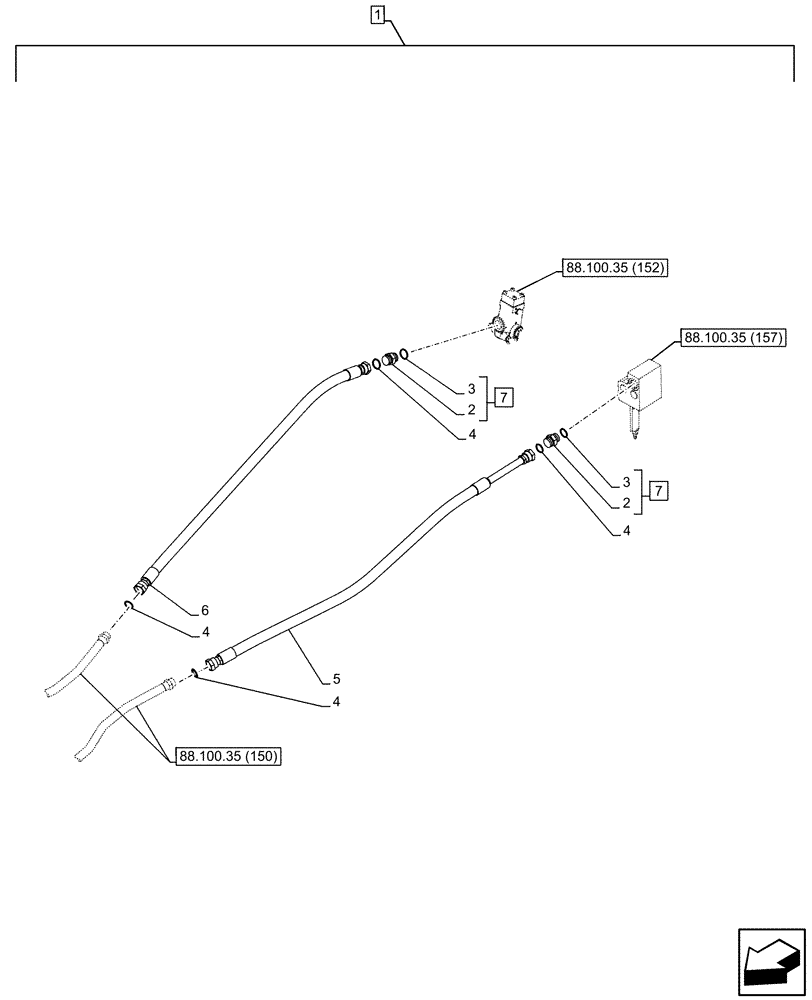

Запчасти Case CX250D LC (88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1BP445-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 7

2шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

3

154523A1

O-RING

2шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

5

KRJ29370

HYDRAULIC HOSE

25mm ID x 1580mm

1шт.

6

KSJ13741

HYDRAULIC HOSE

25mm ID x 1390mm

1шт.

7

KHJ1349

ADAPTER

ASSY, Incl 2, 3

2шт.
