(88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE

Запчасти Case CX250D LC (88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

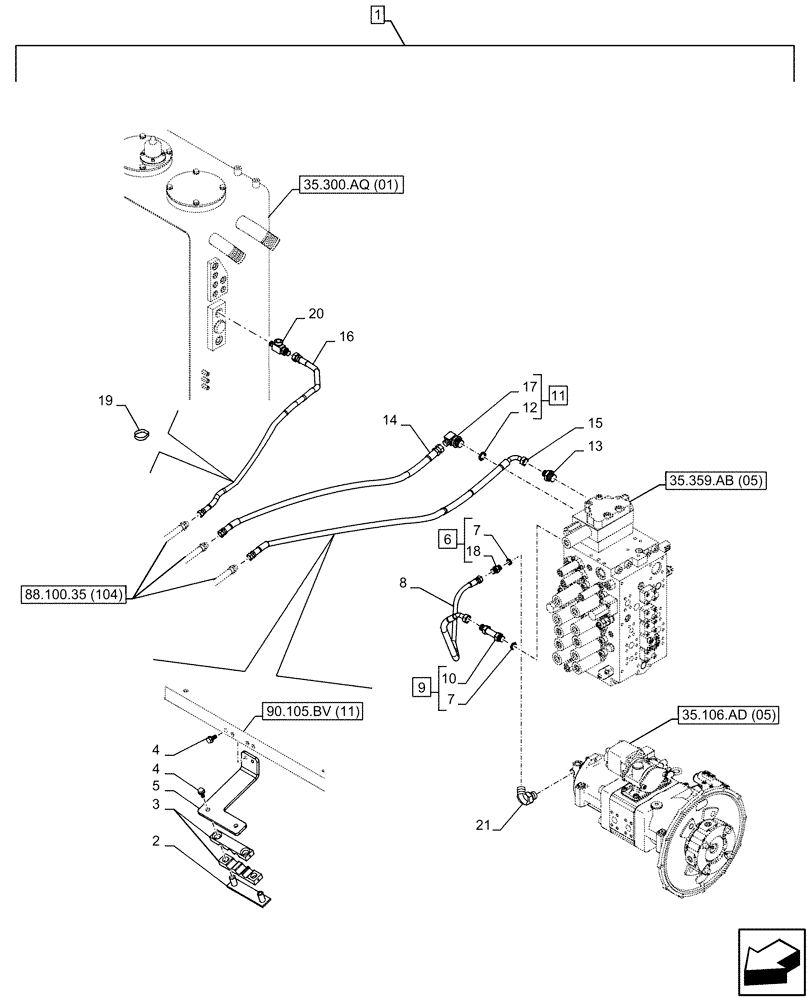

Схема запчастей Case CX250D LC - (88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES
15
35.359.ab (05)
21
88.100.35 (104)
14
16
17
18
35.300.aq (01)
20
7
10
11
3
1
5
13
4
35.106.ad (05)
12
9
19
2
4
6
8
7
90.105.bv (11)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP451-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRJ11590

SUPPORT

1шт.

3

KRJ11580

HOSE CLIP

2шт.

4

166052A1

BOLT

4шт.

5

KBJ19730

BRACKET

1шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 7 (Qty 1), 18

1шт.

7

154487A1

O-RING

2шт.

8

KBJ24900

HYDRAULIC HOSE

1шт.

9

KAJ2432

ADAPTER

ASSY, Incl 7 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

157936A1

ELBOW

ASSY, Incl 12, 17

1шт.

12

154503A1

O-RING

1шт.

13

168988A1

ADAPTER

1шт.

14

KBJ19690

HYDRAULIC HOSE

1шт.

15

KBJ19700

HYDRAULIC HOSE

1шт.

16

KBJ22590

HYDRAULIC HOSE

1шт.

17

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

19

150496A1

MOUNTING CLIP

250mm

4шт.

20

KHJ1300

TEE

1шт.

21

KHJ28600

ELBOW

1шт.
