Запчасти Case CX250D LC (88.100.35[096]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR (88) - ACCESSORIES

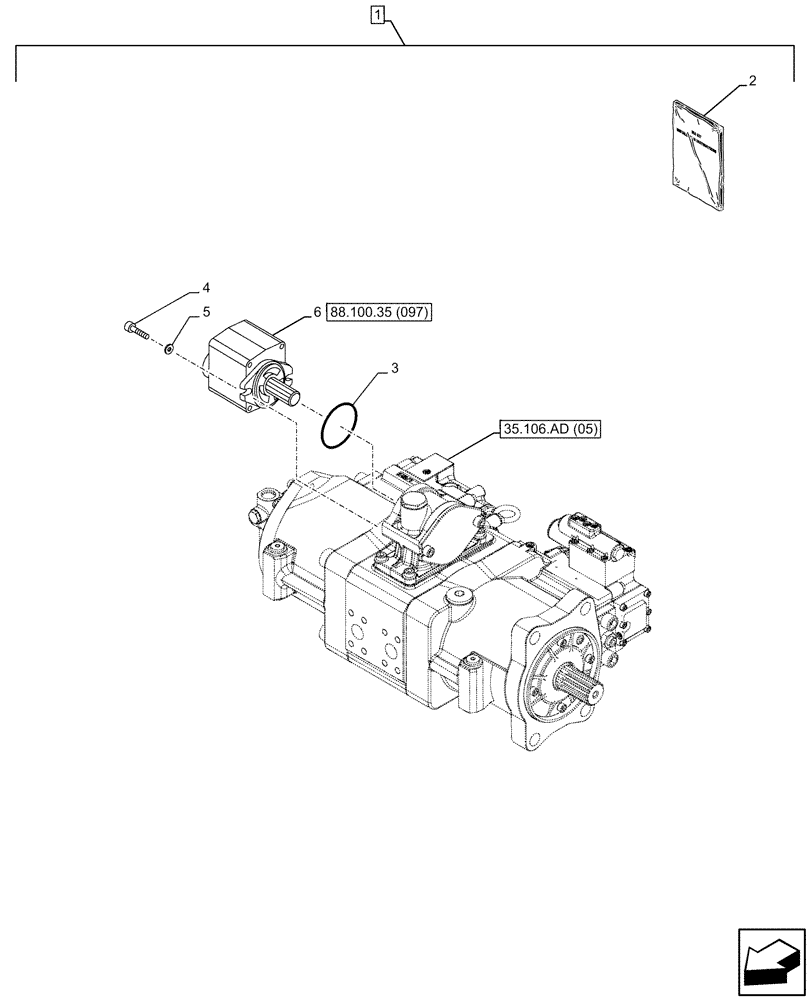

![Схема запчастей Case CX250D LC - (88.100.35[096]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5399782.png)
35.106.ad (05)
3
88.100.35 (097)
6
1
5
2
4
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KG1BP451-00
CONSTRUCTION DIA
Second Option Line Proportional, Incl 2 - 6
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
47789058
INSTRUCTION
1шт.
2
47789094
INSTRUCTION
1шт.
3
154697A1
O-RING
1шт.
4
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
2шт.
5
150409A1
WASHER
2шт.
6
KRJ34770
PUMP
ASSY
1шт.
Выбрано товаров: 8
