(88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX250D LC (88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

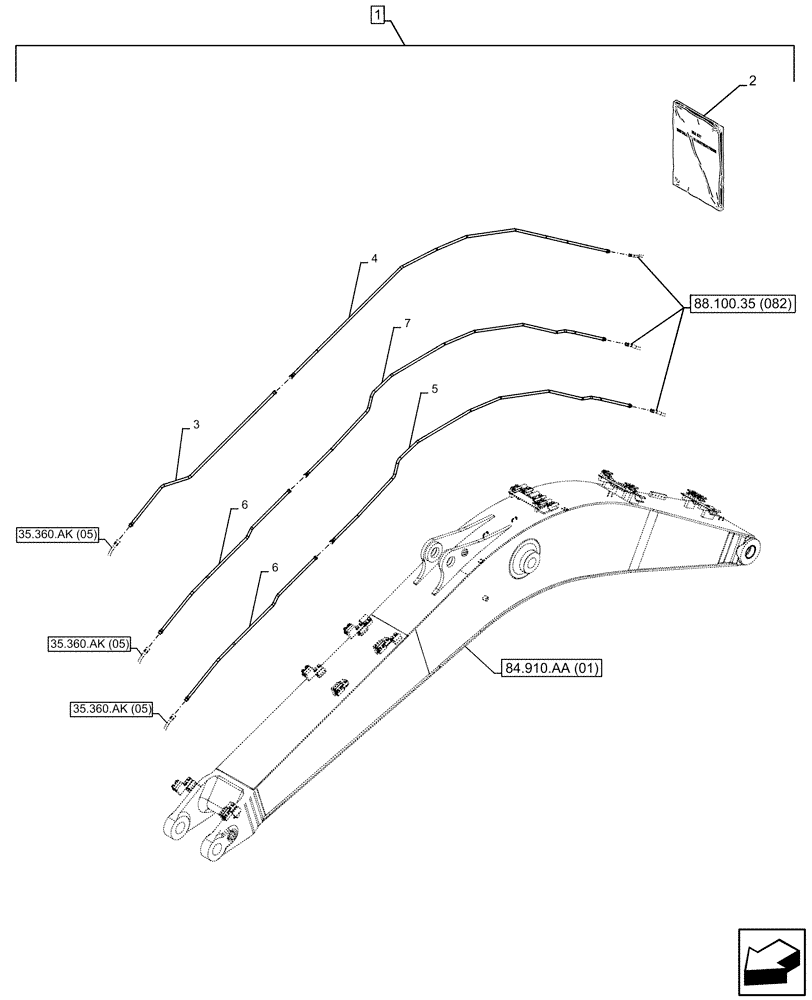

Схема запчастей Case CX250D LC - (88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
4
88.100.35 (082)
2
3
6
35.360.ak (05)
7
35.360.ak (05)
84.910.aa (01)
1
5
6
35.360.ak (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP450-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789055

INSTRUCTION

1шт.

2

47789093

INSTRUCTION

1шт.

3

KBV31260

PIPE

1шт.

4

KBV23681

PIPE

1шт.

5

KBV23690

HYD TUBE

1шт.

6

KBV31250

PIPE

2шт.

7

KBV23660

HYD TUBE

1шт.
