Запчасти Case CX250D LC (88.100.35[036]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE SWITCH (88) - ACCESSORIES

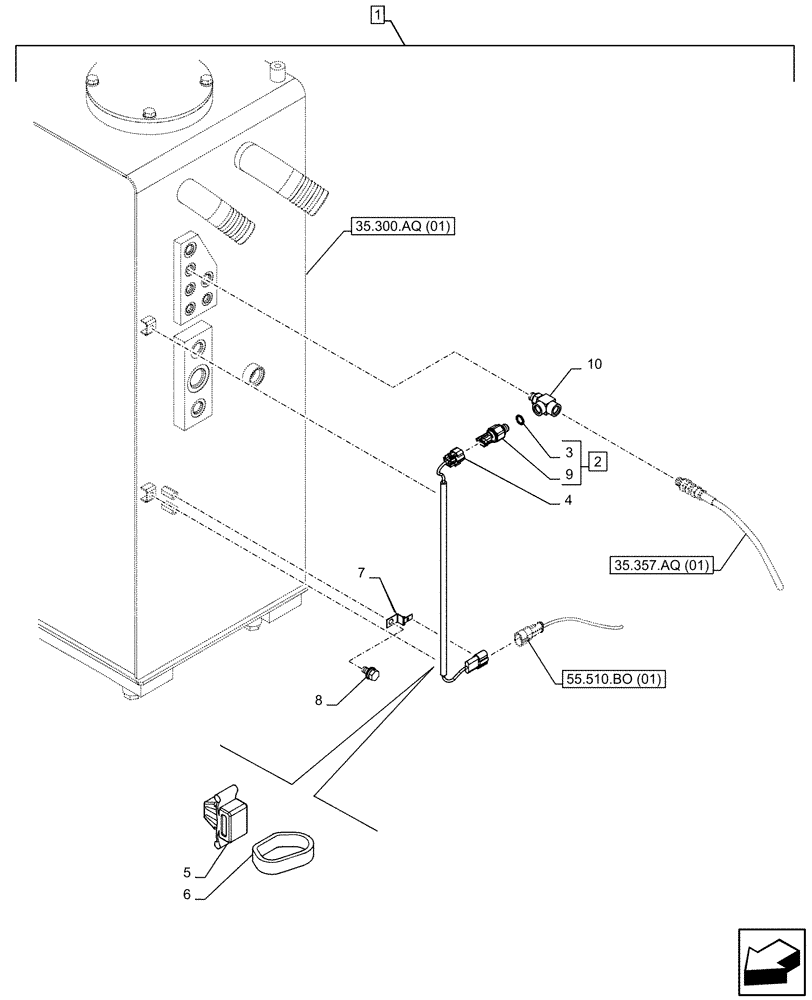

Схема запчастей Case CX250D LC - (88.100.35[036]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE SWITCH (88) - ACCESSORIES
35.300.aq (01)
4
6
10
9
7
8
55.510.bo (01)
5
1
3
2
35.357.aq (01)

Артикул

Название

Примечание

Количество

1

KG1BP441-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR32870

SENSOR

Pressure Sensor, ASSY, Incl 3, 9

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KHR33420

WIRE HARNESS

1шт.

5

KHR10220

MOUNTING CLIP

2шт.

6

150496A1

MOUNTING CLIP

L=250mm

2шт.

7

158962A1

CLIP

1шт.

8

167518A1

BOLT

M8 x 16mm

1шт.

9

NSS

NOT SOLD SEPARAT

Sensor, Incl in 2

1шт.

10

KHJ12530

TEE

G1/4"

1шт.

Выбрано товаров: 11
