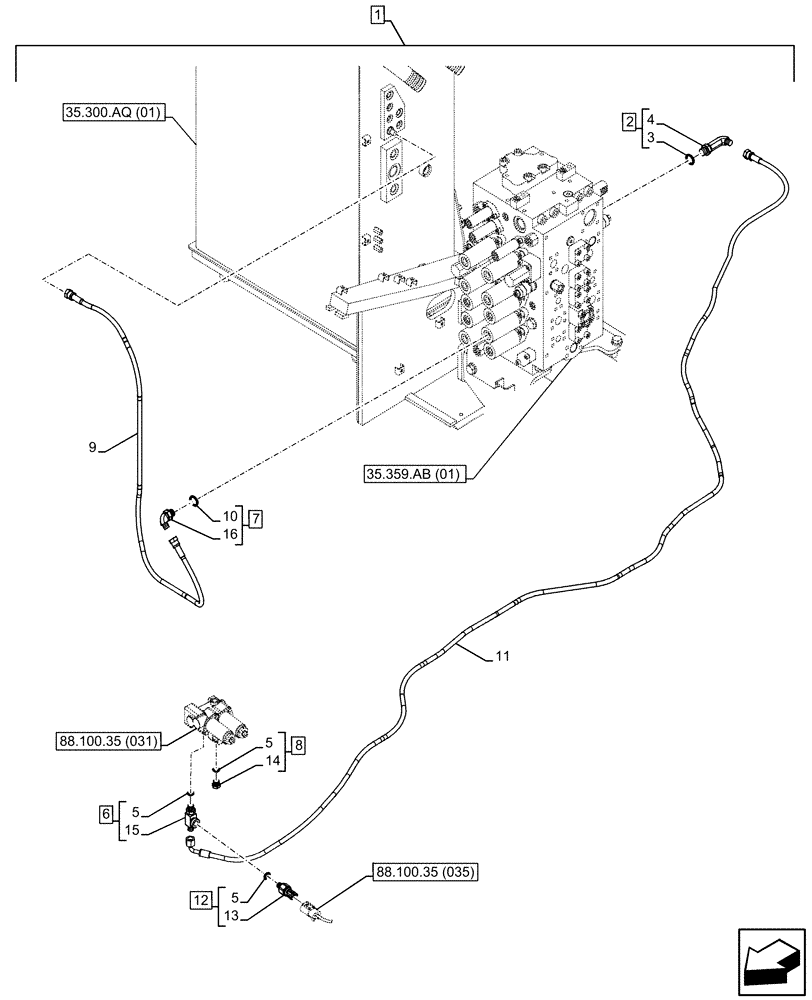

Запчасти Case CX250D LC (88.100.35[034]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

1

KG1BP441-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47758279

ELBOW

ASSY, Incl 3, 4

1шт.

3

47759489

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

167666A1

FITTING

ASSY, Incl 5 (Qty 1), 15

1шт.

7

KHJ28690

ELBOW

ASSY, Incl 10, 16

1шт.

8

159002A1

PLUG

A1 Port, G1/4", ASSY, Incl 5 (Qty 1), 14

1шт.

9

KHJ2055

HOSE

Hydraulic Oil Reservoil to Control Valve PB2 Port, 6mm ID x 1250mm

1шт.

10

154475A1

O-RING

1шт.

11

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

Reducing Valve A2 Port to Control Valve PA2 Port, 6.3mm ID x 3100mm

1шт.

12

KHR26940

SENSOR

Pressure Sensor, 5MPa, ASSY, Incl 5 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

15

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.
