(88.100.35[030]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, COMPONENTS

Запчасти Case CX250D LC (88.100.35[030]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, COMPONENTS (88) - ACCESSORIES

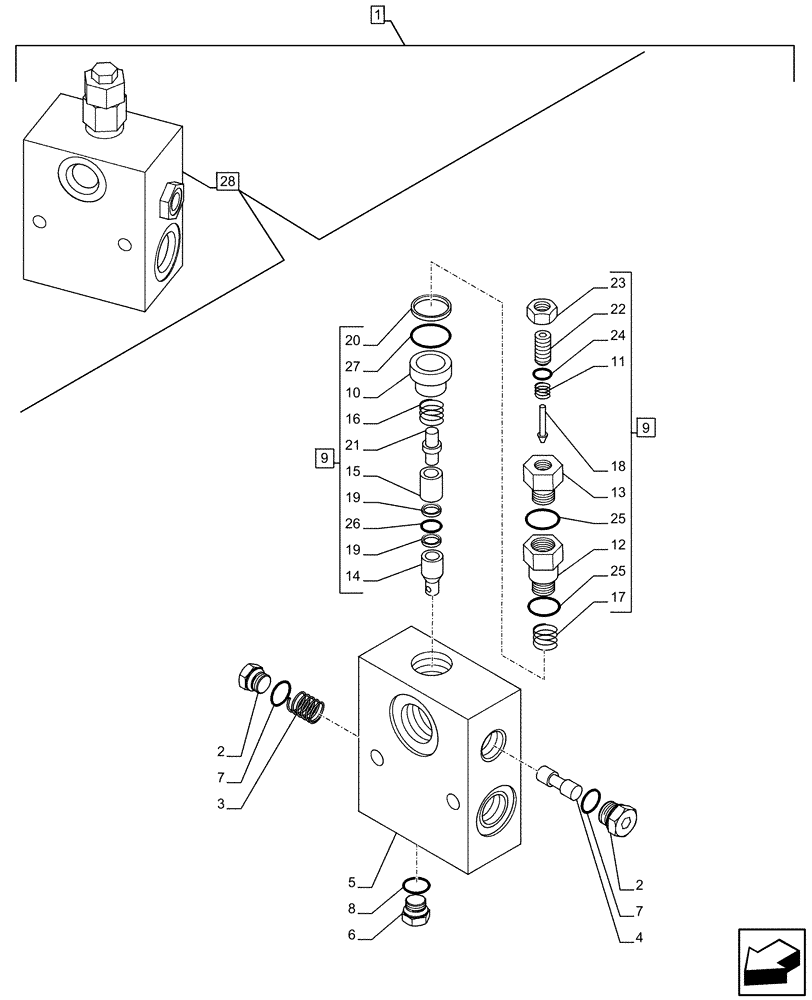

Схема запчастей Case CX250D LC - (88.100.35[030]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, COMPONENTS (88) - ACCESSORIES
15
13
17
9
7
7
21
23
26
25
22
11
1
2
12
27
20
4
14
9
19
6
10
19
24
16
5
2
28
8
18
25
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP441-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 28

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

LG005580

STOP LOCK

2шт.

3

LG005790

COMPRESSION SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Incl in 28

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 28

1шт.

6

155515A1

PLUG

1шт.

7

154487A1

O-RING

2шт.

8

154475A1

O-RING

1шт.

9

KHJ15850

VALVE PRESSURE RELIE

ASSY, Incl 10 - 27

1шт.

10

NSS

NOT SOLD SEPARAT

Piston, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Spring, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Adapter, Incl in 9

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet, Incl in 9

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Incl in 9

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 9

1шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 9

1шт.

18

NSS

NOT SOLD SEPARAT

Valve, Incl in 9

1шт.

19

NSS

NOT SOLD SEPARAT

Ring, Incl in 9

2шт.

20

NSS

NOT SOLD SEPARAT

Ring, Incl in 9

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl in 9

1шт.

22

NSS

NOT SOLD SEPARAT

Screew, Incl in 9

1шт.

23

174R012SR

JAM NUT

1шт.

24

154463A1

O-RING

1шт.

25

155223A1

O-RING

2шт.

26

154457A1

O-RING

1шт.

27

154481A1

O-RING

1шт.

28

KHJ15050

VALVE PRESSURE RELIE

ASSY, Incl 2 - 27

1шт.
