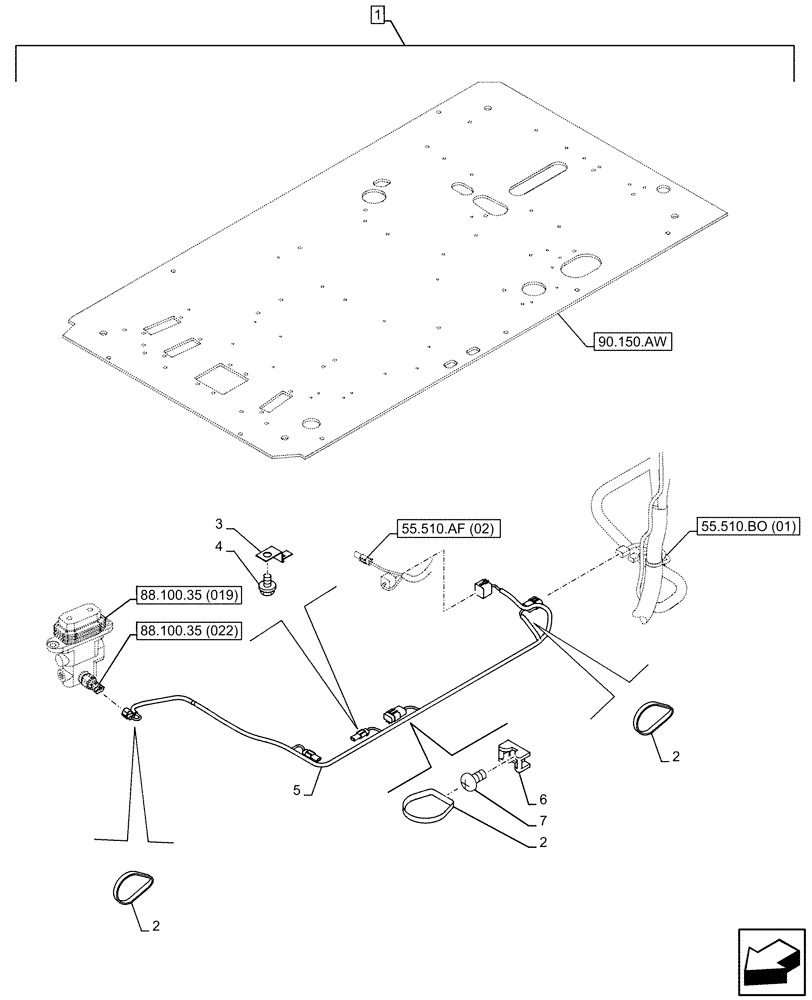

Запчасти Case CX250D LC (88.100.35[023]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, WIRE HARNESS (88) - ACCESSORIES
![Схема запчастей Case CX250D LC - (88.100.35[023]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, WIRE HARNESS (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5390086.png)
2
2
1
55.510.af (02)
88.100.35 (019)
4
88.100.35 (022)
55.510.bo (01)
2
90.150.aw
5
3
6
7
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KG1BP438-00
CONSTRUCTION DIA
Breaker Circuit Pedal Kit, Incl 2 - 7
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
150496A1
MOUNTING CLIP
L=250mm
6шт.
3
165405A1
CLIP
3шт.
4
159602A1
BOLT,Sems, Hex, M6 x 16mm
3шт.
5
KHR39480
WIRE HARNESS
1шт.
6
150860A1
COLLAR
3шт.
7
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
3шт.
Выбрано товаров: 8
