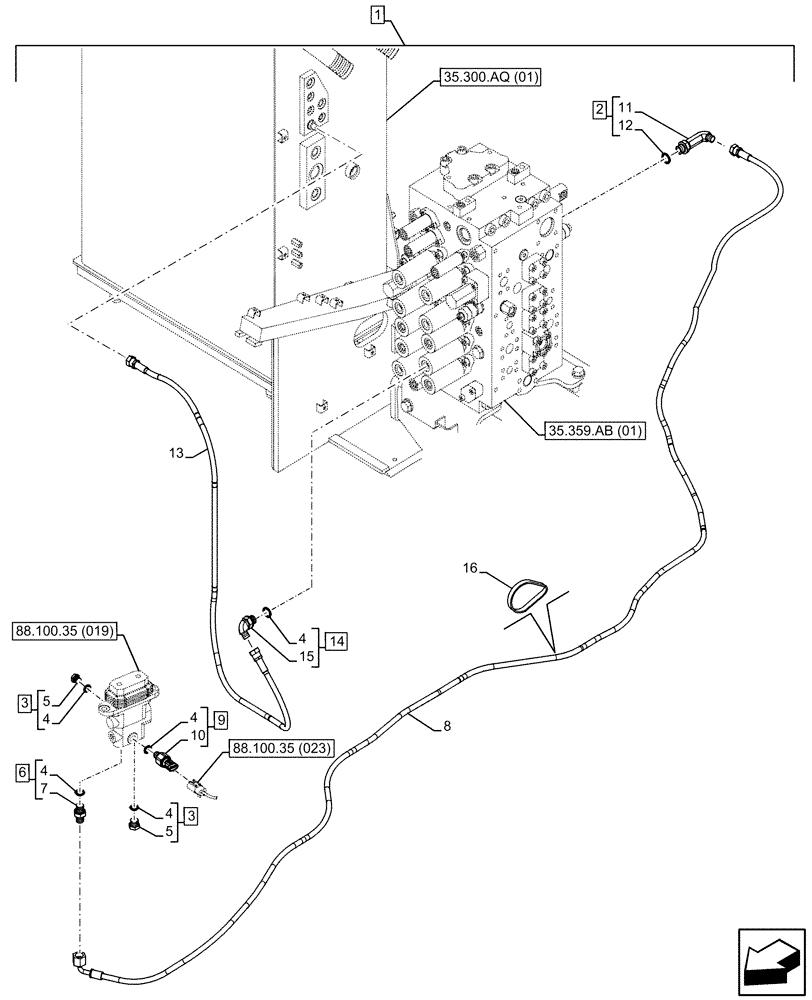

Запчасти Case CX250D LC (88.100.35[022]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

1

KG1BP438-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47758279

ELBOW

ASSY, Incl 11, 12

1шт.

3

159002A1

PLUG

C1 and A Ports, G1/4", ASSY, Incl 4 (Qty 2), 5

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

2шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

G1/4" x G1/4", ASSY, Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

Foot Control Valve B Port to Control Valve PA2 Port, 6.3mm ID x 3100mm

1шт.

9

KHR26940

SENSOR

Pressure Sensor, 5MPa, C2 Port, ASSY, Incl 4 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl In 2

1шт.

12

47759489

O-RING

1шт.

13

KHJ2055

HOSE

Hydraulic Oil Reservoil to Control Valve PB2 Port, 6mm ID x 1250mm

1шт.

14

KHJ28690

ELBOW

ASSY, Incl 4 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

16

150498A1

MOUNTING CLIP

L=297mm

1шт.
