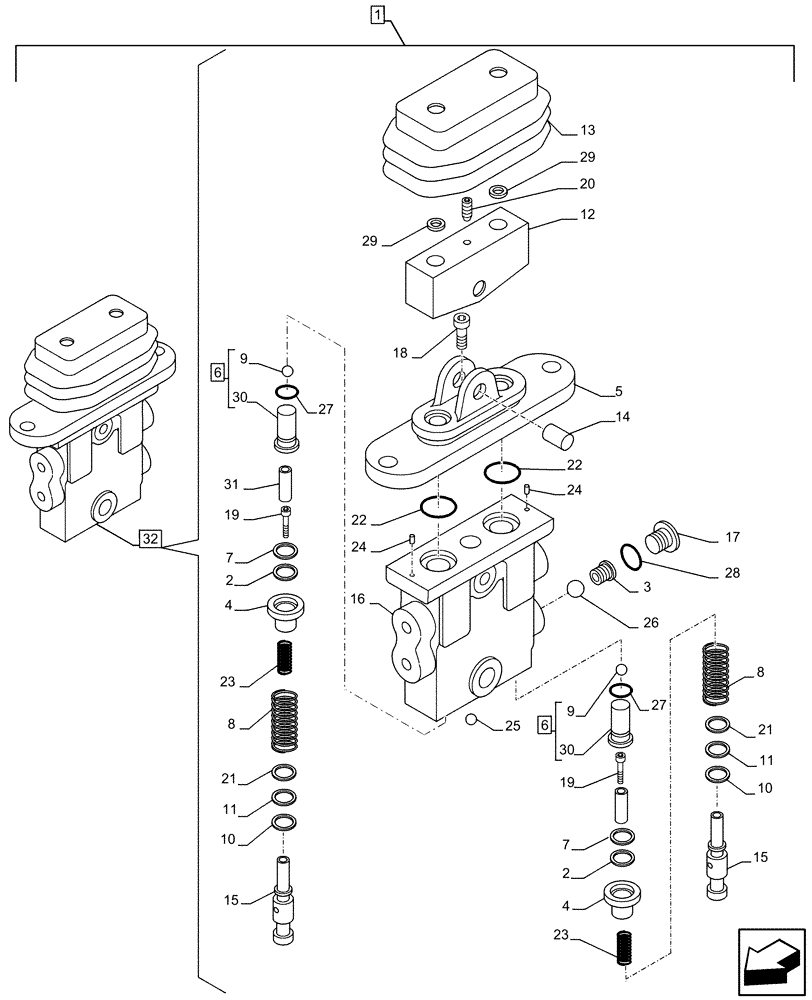

Запчасти Case CX250D LC (88.100.35[020]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, COMPONENTS (88) - ACCESSORIES

1

KG1BP438-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 32

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155570A1

SHIM

2шт.

3

160245A1

SEAT

1шт.

4

160848A1

SLEEVE

2шт.

5

156280A1

COVER

1шт.

6

155754A1

VALVE

ASSY, Incl 9, 30

2шт.

7

155571A1

SHIM

2шт.

8

LG00345

COMPRESSION SPRING

2шт.

9

NSS

NOT SOLD SEPARAT

Ball, Incl in 6

2шт.

10

LH00029

SHIM

2шт.

11

LH00255

SHIM

2шт.

12

TF00005

CAM

1шт.

13

LQ00025

BELLOWS

1шт.

14

LA00706

DOWEL

1шт.

15

NSS

NOT SOLD SEPARAT

Spool, Incl in 32

2шт.

16

NSS

NOT SOLD SEPARAT

Body, Incl in 32

1шт.

17

160083A1

PLUG

1шт.

18

861-12025

HEX SOC SCREW,M12 x 25mm, Cl 12.9

1шт.

19

156179A1

FLANGE BOLT

2шт.

20

878-1088

SET SCREW,Hex Skt, M8 x 8mm, Cup Pt

2шт.

21

156178A1

WASHER

2шт.

22

156903A1

O-RING

2шт.

23

LG007300

COMPRESSION SPRING

2шт.

24

LA010650

DOWEL

2шт.

25

LX00041

BALL

1шт.

26

167013A1

BALL

3шт.

27

154462A1

O-RING

2шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

156177A1

WASHER

2шт.

30

NSS

NOT SOLD SEPARAT

Pusher, Incl in 6

2шт.

31

160849A1

COLLAR

2шт.

32

KHJ24720

CONTROL BLOCK

Foot Control Valve, 3.92MPa OP, ASSY, Incl 2 - 31

1шт.
