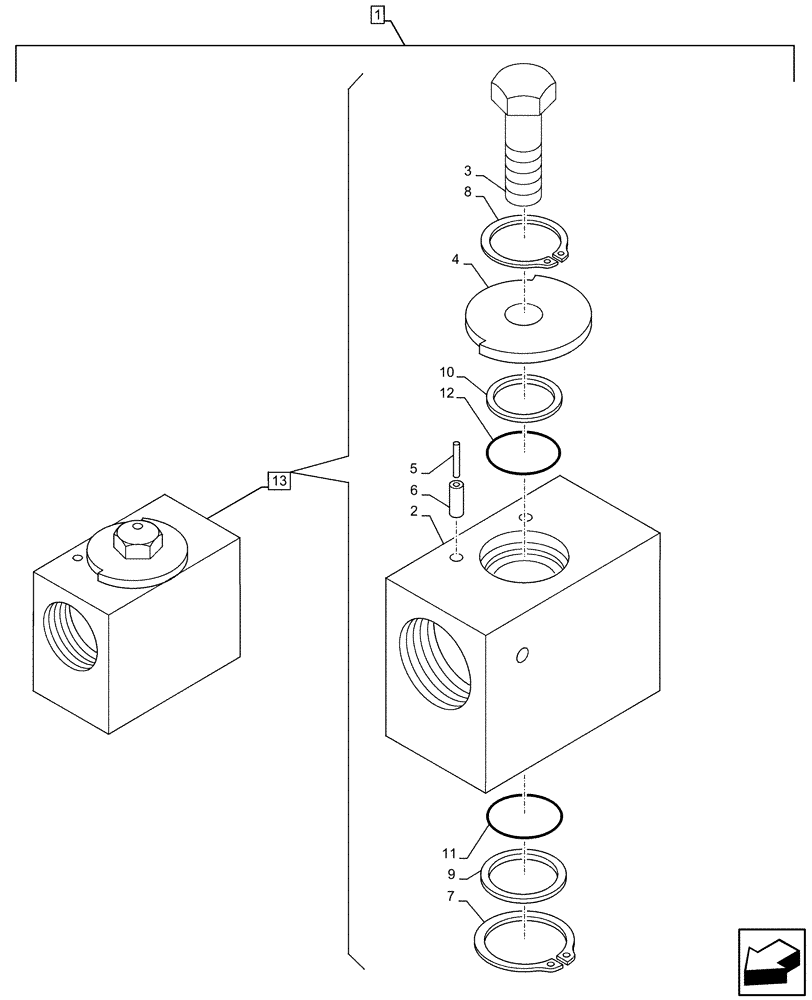

Запчасти Case CX250D LC (88.100.35[010]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, STOP, VALVE, COMPONENTS (88) - ACCESSORIES

1

KG1BP465-00

CONSTRUCTION DIA

Second Option Line, Short Arm, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 13

1шт.

3

NSS

NOT SOLD SEPARAT

Bolt, Incl in 13

1шт.

4

NSS

NOT SOLD SEPARAT

Stopper, Incl in 13

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Incl in 13

1шт.

6

NSS

NOT SOLD SEPARAT

Pin, Incl in 13

1шт.

7

NSS

NOT SOLD SEPARAT

Snap Ring, Incl in 13

1шт.

8

NSS

NOT SOLD SEPARAT

Snap Ring, Incl in 13

1шт.

9

153986A1

BACK-UP RING

1шт.

10

153976A1

BACK-UP RING

1шт.

11

154508A1

O-RING

2шт.

12

154495A1

O-RING

2шт.

13

KHV10440

VALVE

ASSY, Incl 2 - 12

1шт.
