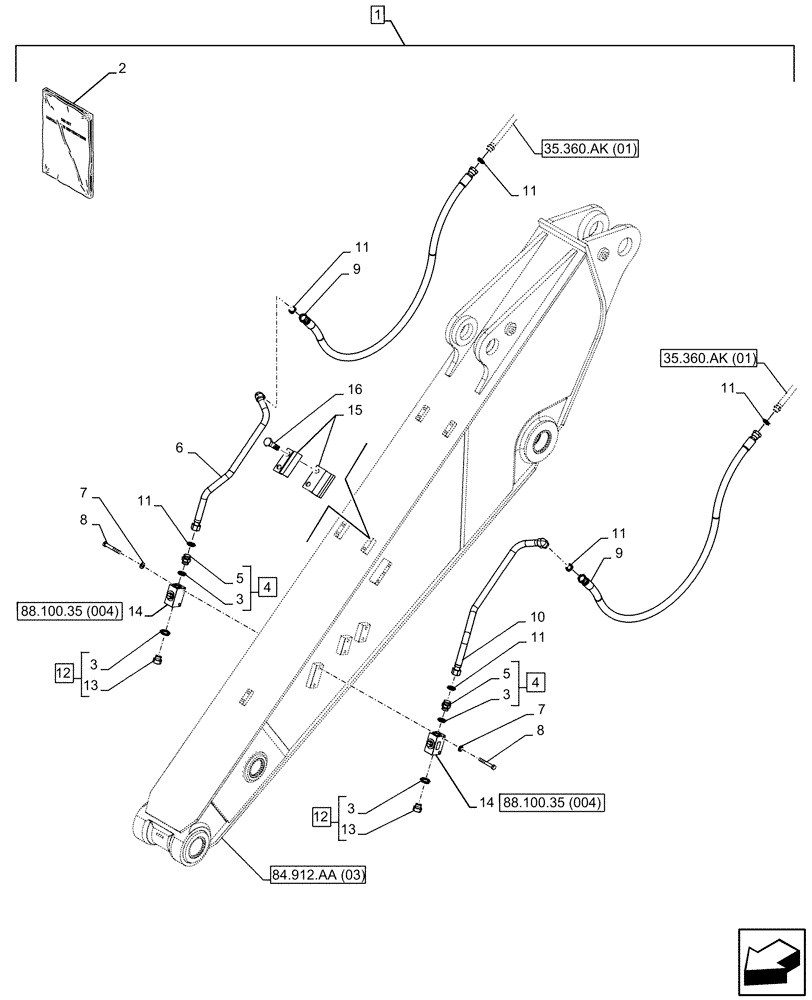

Запчасти Case CX250D LC (88.100.35[003]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, SHORT (L=2.5M) (88) - ACCESSORIES

1

KG1BP462-00

CONSTRUCTION DIA

Option Line, Bar Base, Short Arm, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789067

INSTRUCTION

1шт.

2

47789104

INSTRUCTION

1шт.

3

154523A1

O-RING

4шт.

4

KHJ1349

ADAPTER

ASSY, Incl 3 (Qty 2), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

KBV24210

HYD TUBE

1шт.

7

150811A1

WASHER

4шт.

8

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

M12 x 85mm

4шт.

9

KRV19740

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

2шт.

10

KBV24200

HYD TUBE

1шт.

11

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

12

162659A1

PLUG

ASSY, Incl 3 (Qty 2), 13

2шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

2шт.

14

KHV10430

SHUT-OFF VALVE

ASSY

2шт.

15

KHV10630

COLLAR CLAMP

4шт.

16

166352A1

BOLT

4шт.
