(88.100.10[05]) - DIA KIT, W/ PRE CLEANER, AIR CLEANER, TOP COVER

Запчасти Case CX250D LC (88.100.10[05]) - DIA KIT, W/ PRE CLEANER, AIR CLEANER, TOP COVER (88) - ACCESSORIES

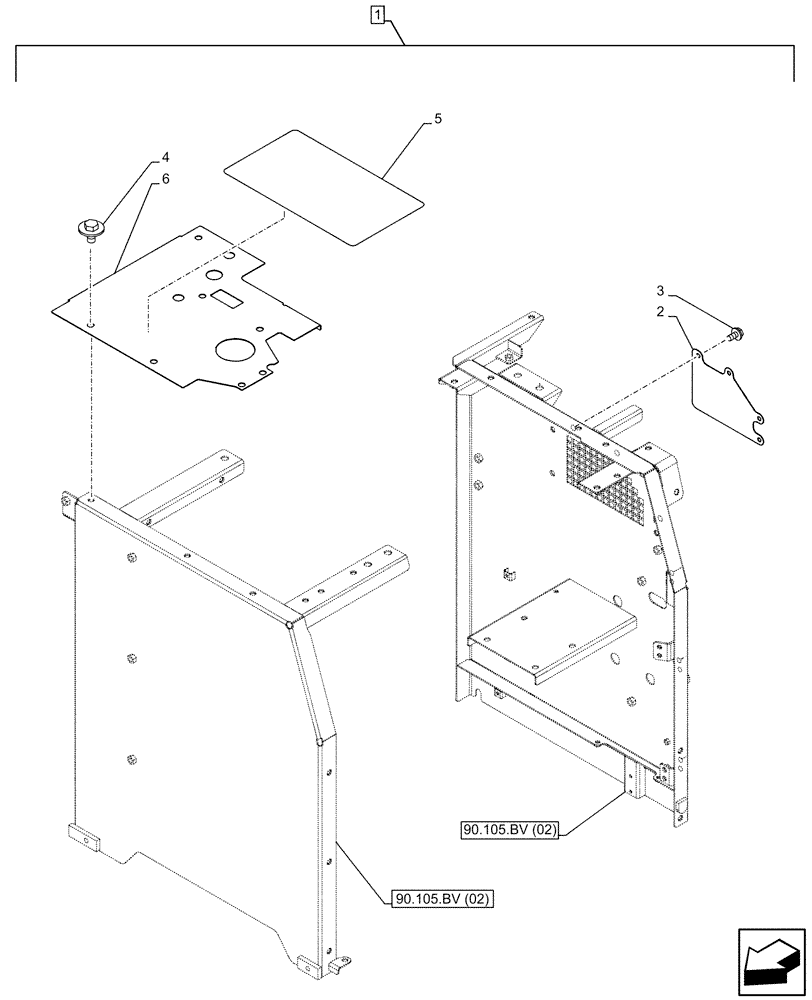

Схема запчастей Case CX250D LC - (88.100.10[05]) - DIA KIT, W/ PRE CLEANER, AIR CLEANER, TOP COVER (88) - ACCESSORIES
90.105.bv (02)
6
2
5
1
3
4
90.105.bv (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP541-00

CONSTRUCTION DIA

Pre-Cleaner, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBN22090

COVER

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

4шт.

4

KHN12020

BOLT,Spcl

M12 x 25mm

7шт.

5

KHP27360

ANTI-SKID STRIP

200mm x 380mm

2шт.

6

KBN22080

COVER

1шт.

Выбрано товаров: 7
