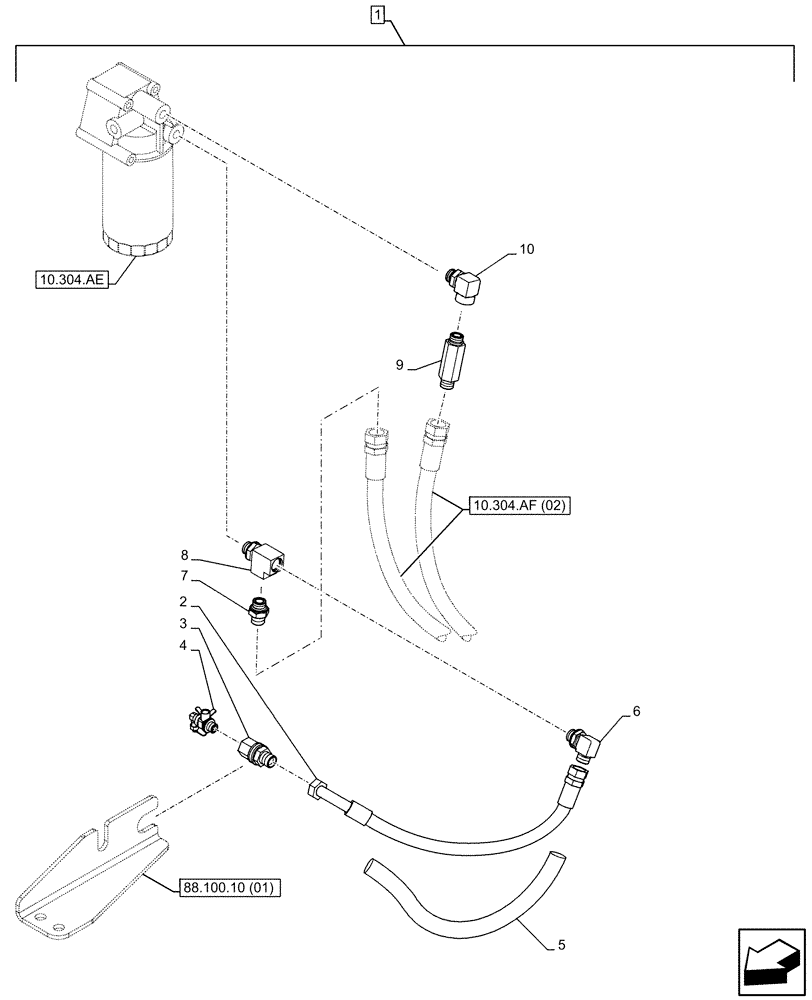

Запчасти Case CX250D LC (88.100.10[02]) - DIA KIT, HYDRAULIC OIL, ENGINE OIL FILTER, DRAIN LINE (88) - ACCESSORIES

1

KG1BP477-00

CONSTRUCTION DIA

Oil Sampling, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBH14700

HYDRAULIC HOSE

L=810mm

1шт.

3

KHH17400

ADAPTER

1шт.

4

KBH14721

COCK

1шт.

5

KMR12260

PROTECTIVE SLEEVE

L=580mm

1шт.

6

KHH14660

ELBOW

G3/4" x G3/4"

1шт.

7

KHH14620

ADAPTER

G3/4" x G3/4"

1шт.

8

KHH17360

TEE

1шт.

9

KHH17600

STUD

1шт.

10

KHH17590

ELBOW UNION

1шт.
