(84.912.AD[04]) - VAR - 481064, 461548, 781149, 781178 - ARM, CYLINDER, BUSHING

Запчасти Case CX250D LC (84.912.AD[04]) - VAR - 481064, 461548, 781149, 781178 - ARM, CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

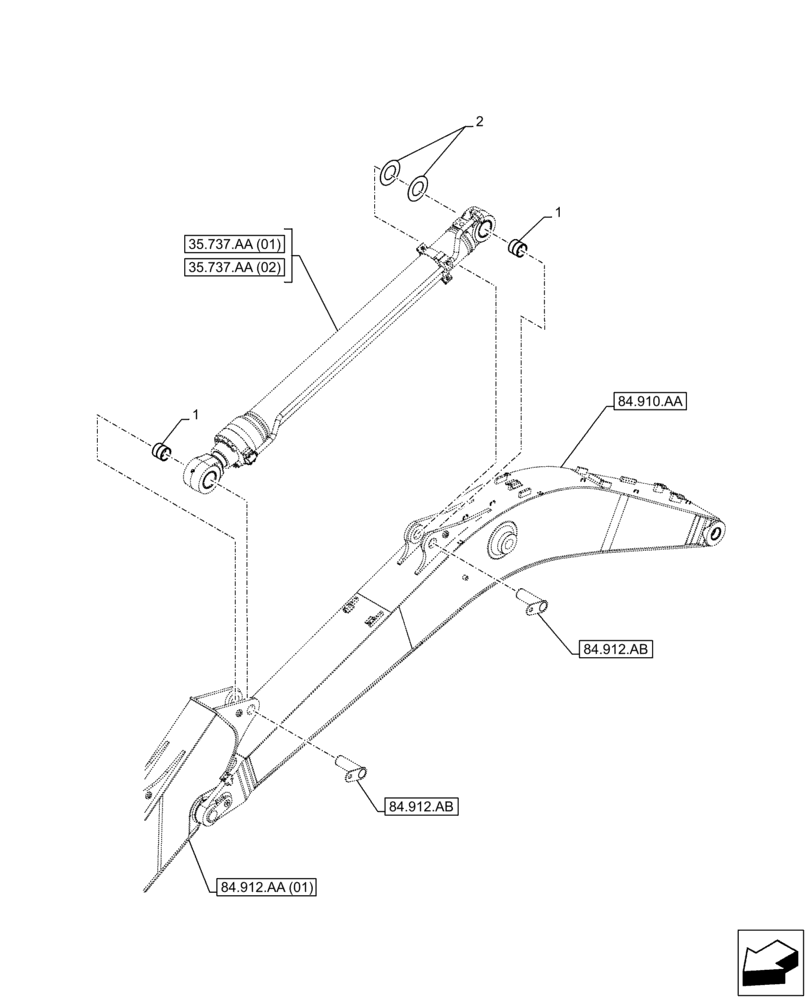

Схема запчастей Case CX250D LC - (84.912.AD[04]) - VAR - 481064, 461548, 781149, 781178 - ARM, CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
84.910.aa
35.737.aa (01)
1
1
84.912.ab
2
84.912.aa (01)
35.737.aa (02)
84.912.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV1362

SELF LUB RING

2шт.

Part is Included in Arm Cylinder Assembly PN KBV31130, PN KBV34010

1шт.

2

159451A1

SHIM

2шт.
