(84.910.AD[01]) - VAR - 481858 - BOOM, BUSHING (L=5.85M)

Запчасти Case CX250D LC (84.910.AD[01]) - VAR - 481858 - BOOM, BUSHING (L=5.85M) (84) - BOOMS, DIPPERS & BUCKETS

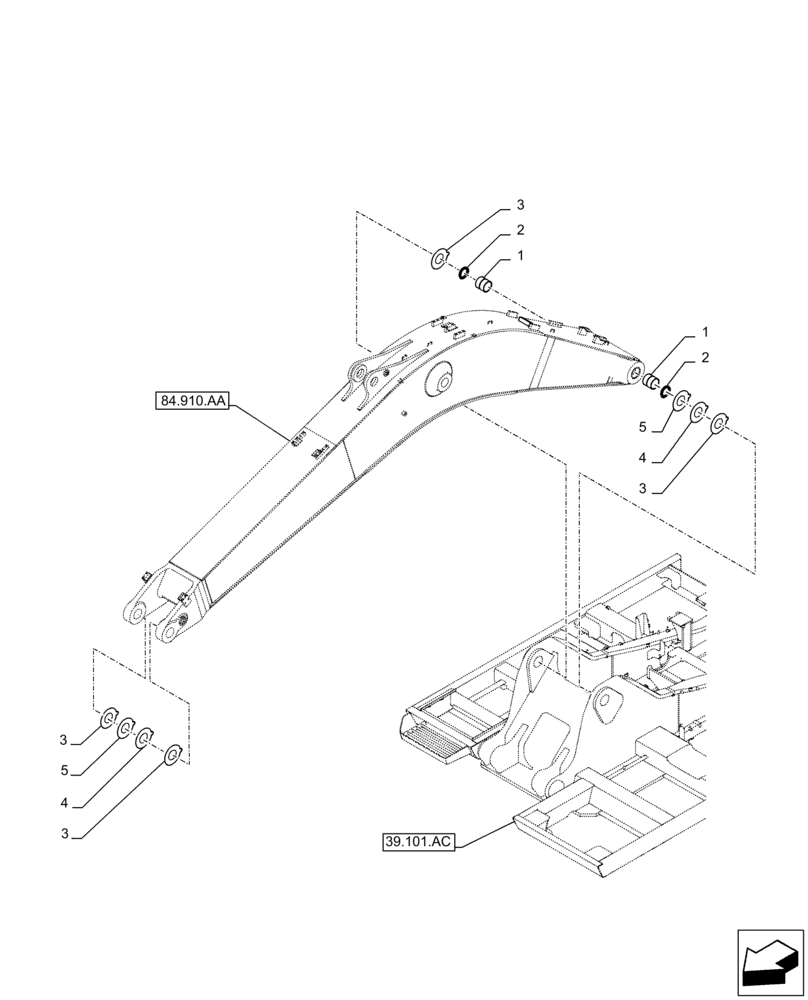

Схема запчастей Case CX250D LC - (84.910.AD[01]) - VAR - 481858 - BOOM, BUSHING (L=5.85M) (84) - BOOMS, DIPPERS & BUCKETS
2
5
1
3
84.910.aa
3
39.101.ac
4
1
4
3
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV1360

SELF LUB RING

2шт.

Parts is included in Boom Assembly PN KBV33931

1шт.

2

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

2шт.

Parts is included in Boom Assembly PN KBV33931

1шт.

3

KBV11190

SHIM,1mm Thk

4шт.

4

KBV11200

SHIM,2mm Thk

2шт.

5

KBV24250

SHIM

2шт.

Выбрано товаров: 7
