(55.530.AD[01]) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS

Запчасти Case CX250D LC (55.530.AD[01]) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

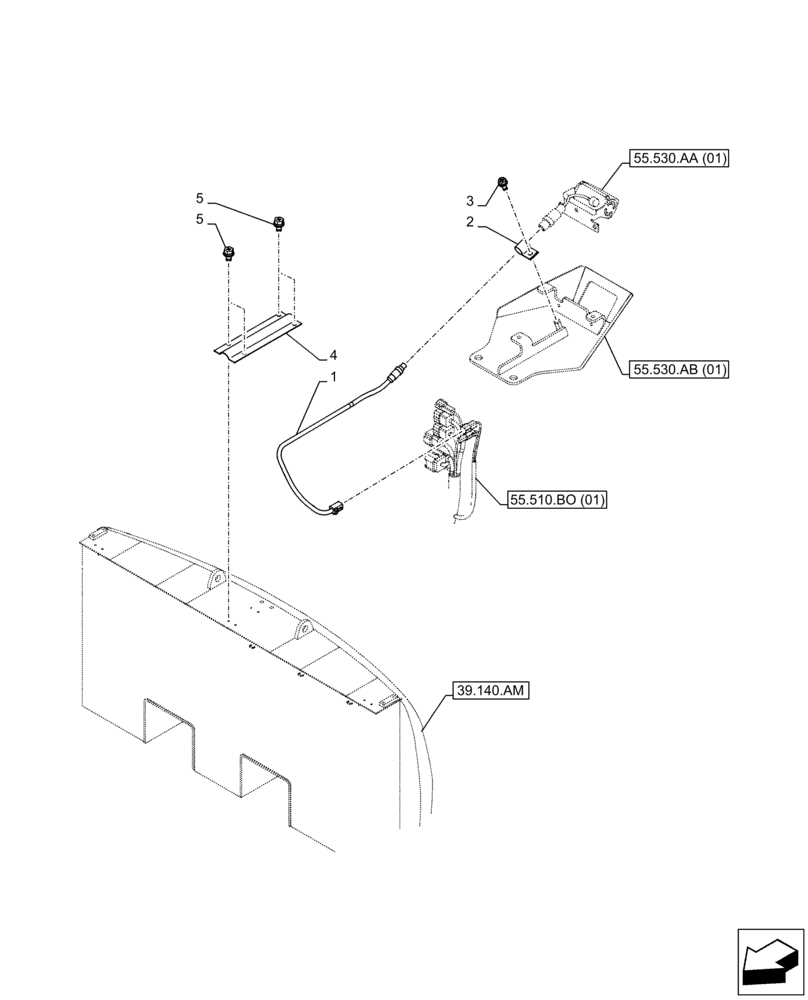

Схема запчастей Case CX250D LC - (55.530.AD[01]) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
2
4
55.530.aa (01)
3
5
39.140.am
55.530.ab (01)
55.510.bo (01)
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR40560

WIRE HARNESS

Rear Camera

1шт.

2

157806A1

COLLAR

1шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

1шт.

4

KHR40240

COVER

1шт.

5

KHN2308

SCREW

M8 x 16mm

4шт.

Выбрано товаров: 5
