(55.510.BB[03]) - VAR - 461865, 461869, 461871, 461872 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (55.510.BB[03]) - VAR - 461865, 461869, 461871, 461872 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

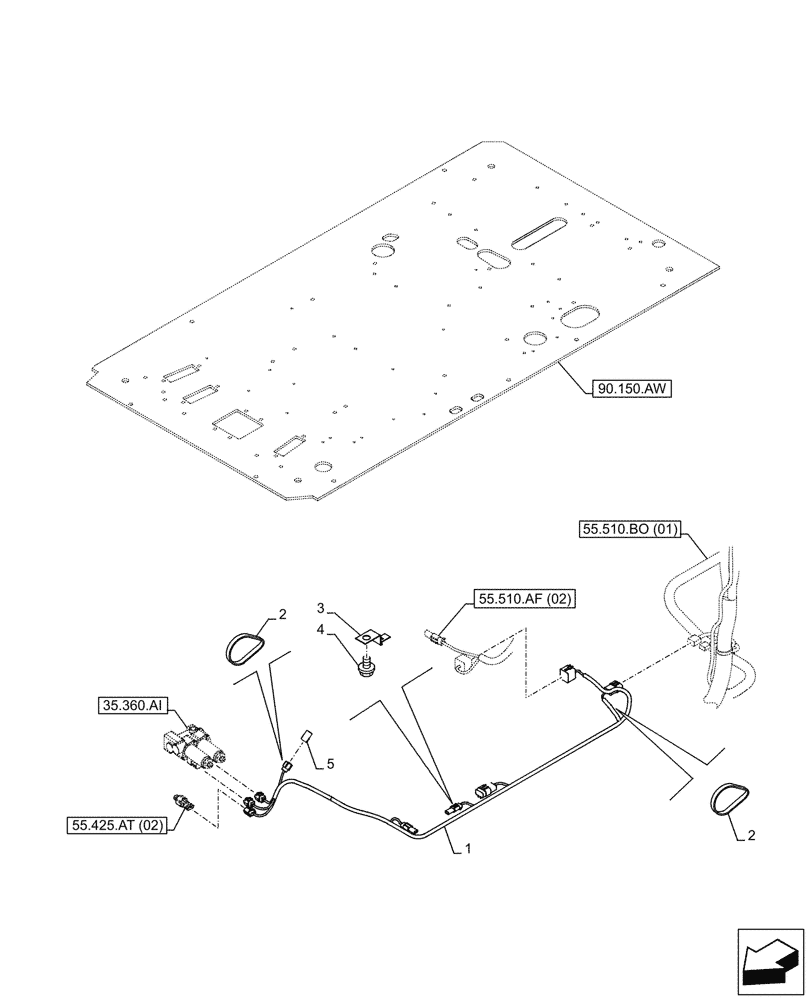

Схема запчастей Case CX250D LC - (55.510.BB[03]) - VAR - 461865, 461869, 461871, 461872 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
90.150.aw
5
2
1
3
4
2
55.510.bo (01)
35.360.ai
55.425.at (02)
55.510.af (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR39501

WIRE HARNESS

from Main Harness to Solenoid Valve

1шт.

2

150496A1

MOUNTING CLIP

250mm

3шт.

3

165405A1

CLIP

3шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

5

KHR45330

ELEC CONNECTOR

1шт.

Выбрано товаров: 5
