(55.036.AB[01]) - VAR - 461865, 461869 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (55.036.AB[01]) - VAR - 461865, 461869 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

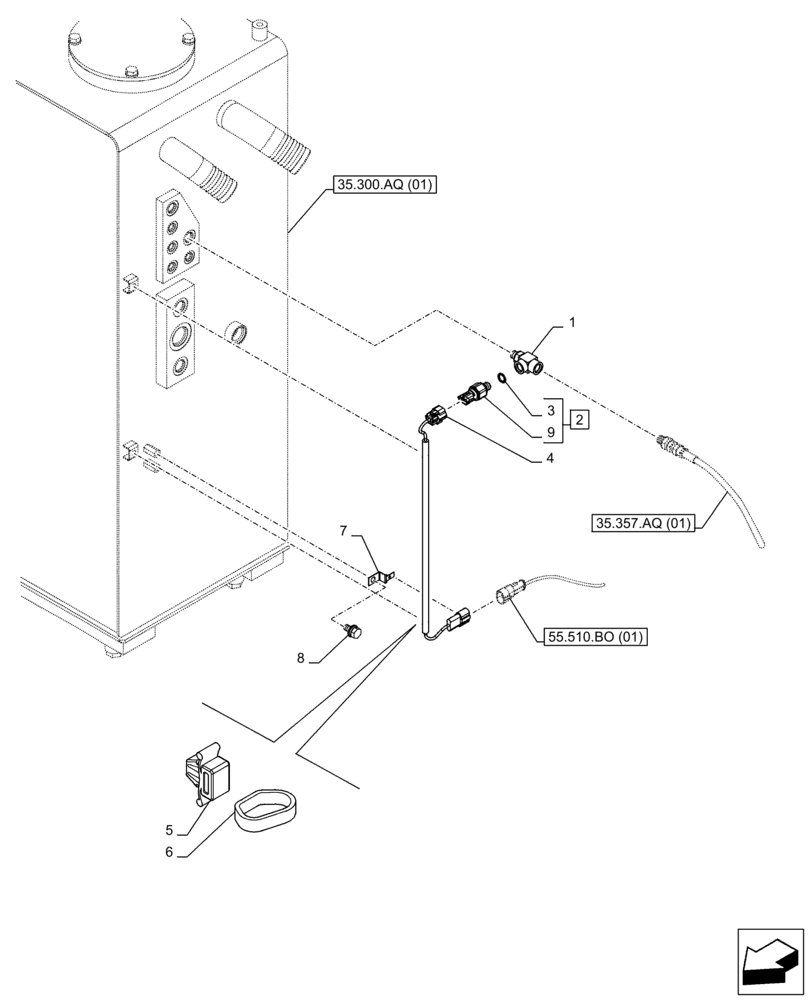

Схема запчастей Case CX250D LC - (55.036.AB[01]) - VAR - 461865, 461869 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
55.510.bo (01)
3
5
2
1
8
4
6
9
7
35.300.aq (01)
35.357.aq (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ12530

TEE

G1/4"

1шт.

2

KHR32870

SENSOR

ASSY, Pressure, Incl 3, 9

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KHR33420

WIRE HARNESS

1шт.

5

KHR10220

MOUNTING CLIP

2шт.

6

150496A1

MOUNTING CLIP

2шт.

7

158962A1

CLIP

1шт.

8

167518A1

BOLT

1шт.

9

NSS

NOT SOLD SEPARAT

Sensor, Incl in 2

1шт.

Выбрано товаров: 9
