(48.138.AD[02]) - TRACK ROLLER, SUPPORT, COMPONENTS

Запчасти Case CX250D LC (48.138.AD[02]) - TRACK ROLLER, SUPPORT, COMPONENTS (48) - TRACKS & TRACK SUSPENSION

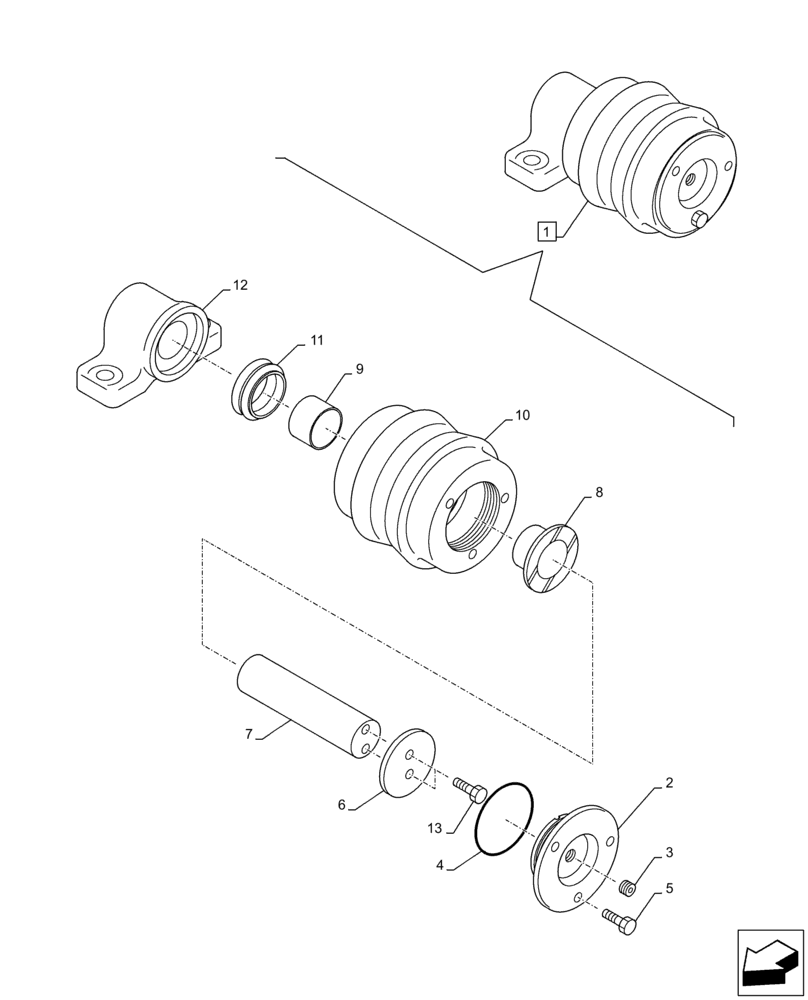

Схема запчастей Case CX250D LC - (48.138.AD[02]) - TRACK ROLLER, SUPPORT, COMPONENTS (48) - TRACKS & TRACK SUSPENSION
7
6
2
8
9
13
4
5
3
1
12
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRA13750

TRACK ROLLER

ASSY, LH/RH, Carrier Roller, Incl 2 - 13, Start Serial: D0098

4шт.

2

KRA1719

COVER

, Start Serial: D0098

4шт.

3

150821A1

PLUG

, Start Serial: D0098

4шт.

4

150200A1

O-RING

, Start Serial: D0098

4шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

, Start Serial: D0098

12шт.

6

159685A1

PLATE, THRUST

, Start Serial: D0098

4шт.

7

159692A1

WHEEL SHAFT

, Start Serial: D0098

4шт.

8

158776A1

BUSHING,46mm ID x 70mm OD x 42mm L

, Start Serial: D0098

4шт.

9

158777A1

BUSHING,46mm ID x 50mm OD x 38mm L

, Start Serial: D0098

4шт.

10

KRA1718

TRACK ROLLER,140mm OD x 156mm W

, Start Serial: D0098

4шт.

11

159399A1

SEAL,56mm ID x 76mm OD x 25mm Thk

, Start Serial: D0098

4шт.

12

KRA13740

CASING, BEARING ROLL

, Start Serial: D0098

4шт.

13

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

, Start Serial: D0098

8шт.
