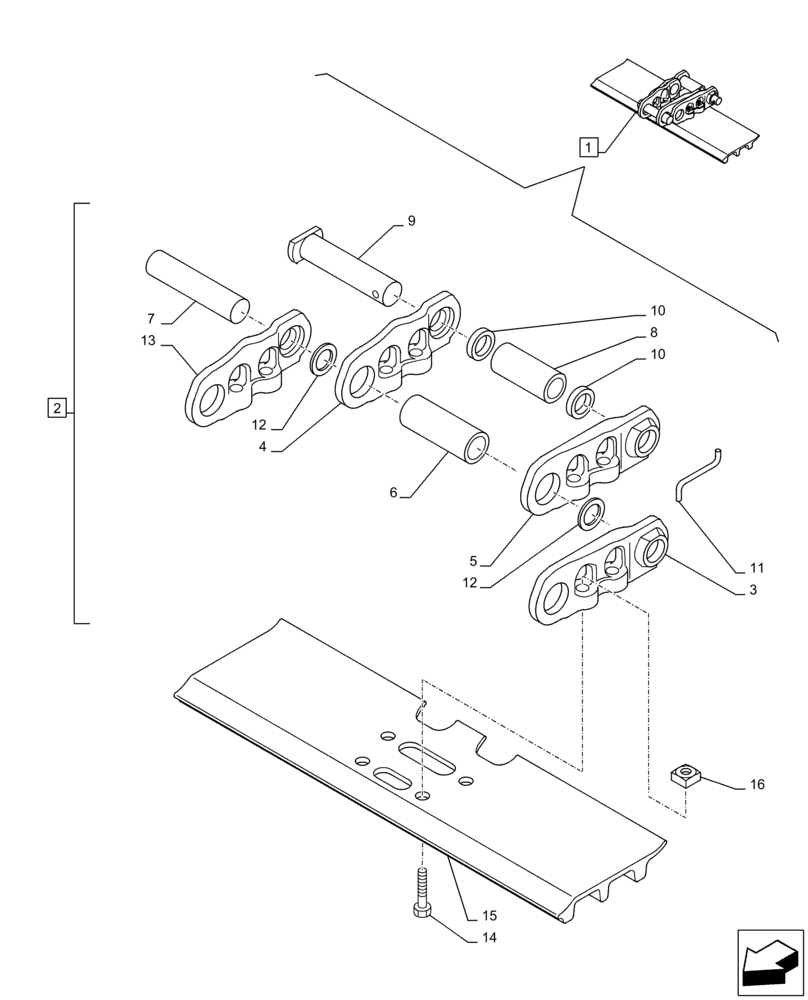

Запчасти Case CX250D LC (48.100.AD[08]) - VAR - 956000 - TRACK CHAIN (L=900MM), COMPONENTS (48) - TRACKS & TRACK SUSPENSION

1

KBA1293

ASSY, 900mm, Incl 2 - 13, Serial Range: -C0093

1шт.

1

KBA11260

SHOE

ASSY, 900mm, Incl 2 - 13, Start Serial: D0093

2шт.

2

KBA1297

CHAIN (CE)

ASSY, Incl 3 - 13, Serial Range: -C0093

2шт.

2

KBA11280

CHAIN (CE)

ASSY, Incl 3 - 13, Serial Range: D0093-C0008

2шт.

2

KBA17760

TRACK LINK

ASSY, Incl 3 - 13, Start Serial: D0008

2шт.

3

KRA1808

LINK

100шт.

4

KRA1809

LINK

2шт.

5

KRA1810

LINK CHAIN

2шт.

6

KRA1811

BUSHING

100шт.

7

KRA1812

PIN

, Serial Range: -C0093

100шт.

7

KRA11110

PIN

, Start Serial: D0093

100шт.

8

KRA1813

BUSHING

, Serial Range: -C0093

2шт.

8

KRA1569

BUSHING

, Start Serial: D0093

2шт.

9

159676A1

HEADED PIN,36.3mm OD x 208mm L

, Serial Range: -C0008

2шт.

9

KRA18900

HEADED PIN

, Start Serial: D0008

2шт.

10

159673A1

SPACER, RING

4шт.

11

159677A1

COTTER PIN,8mm OD

2шт.

12

KRA1814

DUST CAP

200шт.

13

KRA1807

LINK

100шт.

14

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

408шт.

15

KRA1366

TRACK SHOE

900mm

102шт.

16

159669A1

NUT

408шт.
