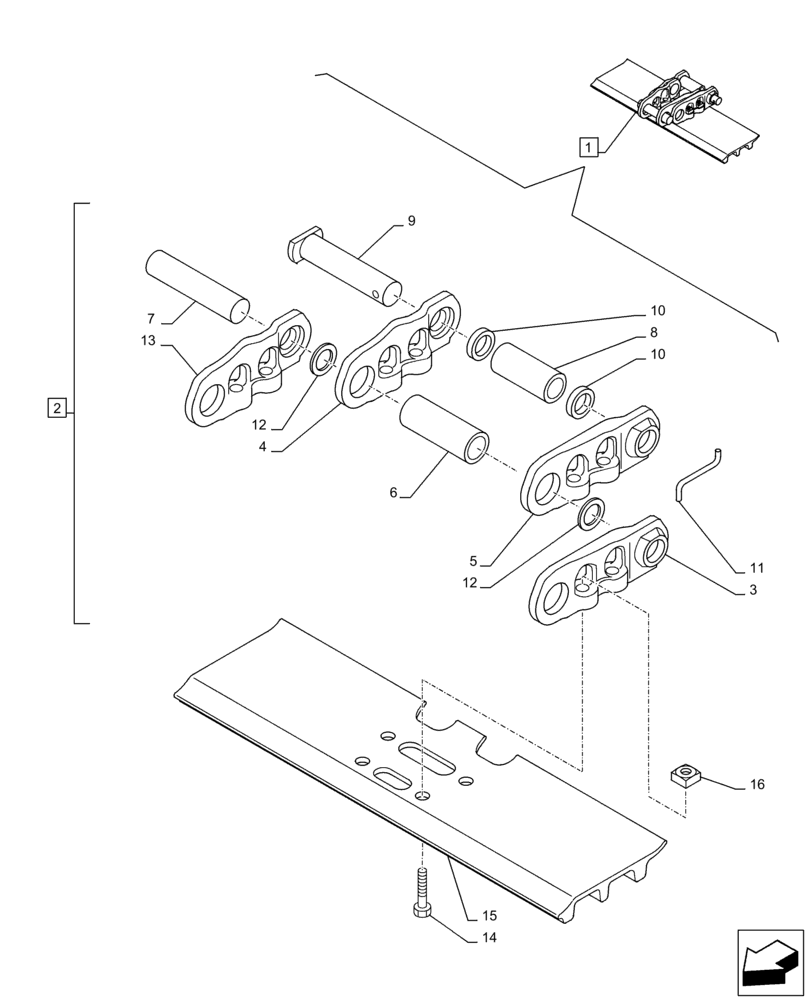

Запчасти Case CX250D LC (48.100.AD[04]) - VAR - 956000 - TRACK CHAIN (L=700MM), COMPONENTS (48) - TRACKS & TRACK SUSPENSION

1

KBA1291

, Serial Range: -C0095

2шт.

1

KBA11240

SHOE

ASSY, 700mm, Incl 2 - 13, Start Serial: D0095

2шт.

2

KBA1297

CHAIN (CE)

, Serial Range: -C0095

2шт.

2

KBA11280

CHAIN (CE)

ASSY, Incl 3 - 13, Serial Range: D0095-C0003

2шт.

2

KBA17760

TRACK LINK

ASSY, Incl 3 - 13, Start Serial: D0003

2шт.

3

KRA1808

LINK

100шт.

4

KRA1809

LINK

2шт.

5

KRA1810

LINK CHAIN

2шт.

6

KRA1811

BUSHING

100шт.

7

KRA1812

PIN

, Serial Range: -C0095

100шт.

7

KRA11110

PIN

, Start Serial: D0095

100шт.

8

KRA1813

BUSHING

, Serial Range: -C0095

2шт.

8

KRA1569

BUSHING

, Start Serial: D0095

2шт.

9

159676A1

HEADED PIN,36.3mm OD x 208mm L

, Serial Range: -C0003

2шт.

9

KRA18900

HEADED PIN

, Start Serial: D0003

2шт.

10

159673A1

SPACER, RING

4шт.

11

159677A1

COTTER PIN,8mm OD

2шт.

12

KRA1814

DUST CAP

200шт.

13

KRA1807

LINK

100шт.

14

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

408шт.

15

159416A1

TRACK SHOE

700mm

102шт.

16

159669A1

NUT

408шт.
