(35.738.AE[04]) - VAR - 781178 - BUCKET CYLINDER, LINES (ARM L=3.0M)

Запчасти Case CX250D LC (35.738.AE[04]) - VAR - 781178 - BUCKET CYLINDER, LINES (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

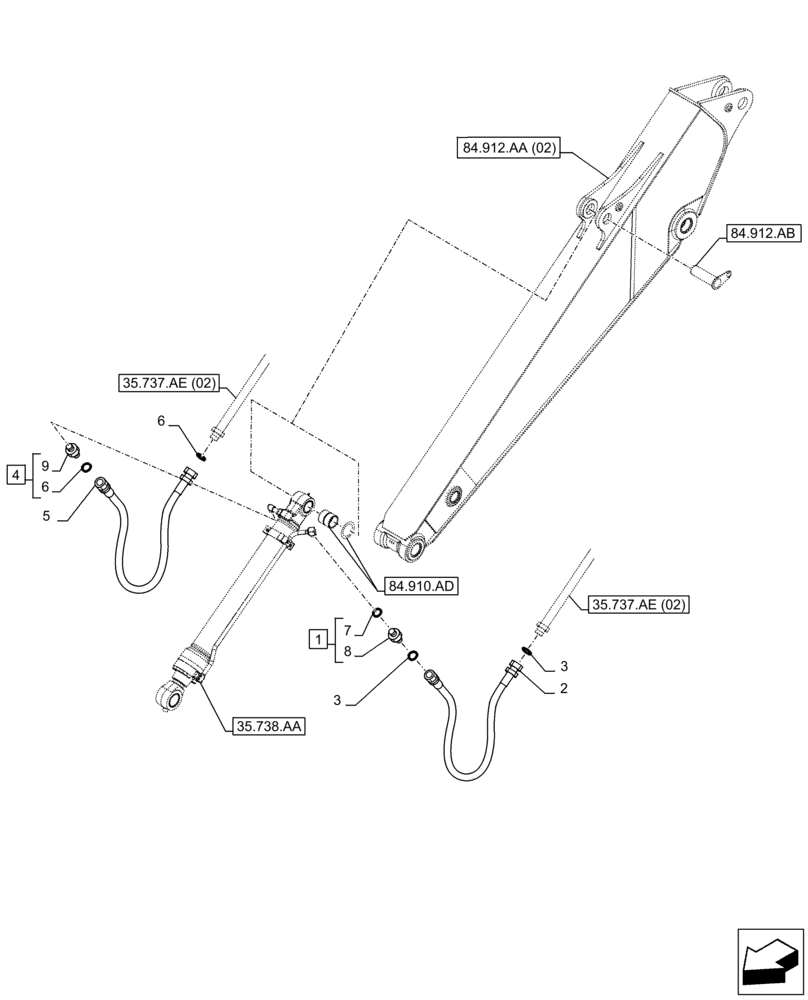

Схема запчастей Case CX250D LC - (35.738.AE[04]) - VAR - 781178 - BUCKET CYLINDER, LINES (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS
7
3
35.737.ae (02)
5
8
3
6
1
84.910.ad
35.737.ae (02)
6
35.738.aa
2
84.912.aa (02)
84.912.ab
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1348

ADAPTER

ASSY, Incl 7,8

1шт.

2

KBV31300

HYDRAULIC HOSE

1500mm

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

4

KHJ15840

ADAPTER

ASSY, Incl 6, 9

1шт.

5

KBV31310

HYDRAULIC HOSE

1500mm

1шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

7

154503A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.
