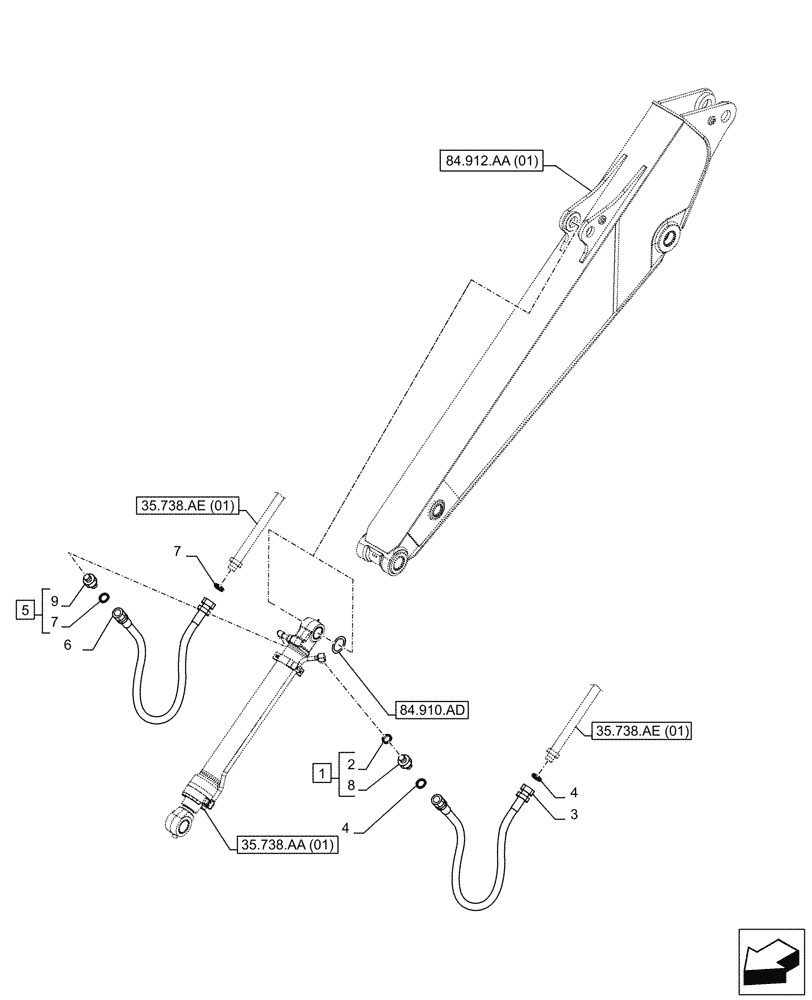

Запчасти Case CX250D LC (35.738.AE[03]) - VAR - 781149 - BUCKET CYLINDER, LINES (ARM L=3.5M) (35) - HYDRAULIC SYSTEMS

1

KHJ1348

ADAPTER

ASSY, Incl 2 - 8

1шт.

2

157141A1

WASHER

1шт.

3

KBV19010

HYDRAULIC HOSE

2000mm, Serial Range: -C0232

1шт.

3

KBV19011

HOSE

2000mm, Start Serial: D0232

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

5

KHJ15840

ADAPTER

ASSY, Incl in 7, 9

1шт.

6

KBV16740

HYDRAULIC HOSE,22.20 mm ID x 2000.00 mm

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.
