(35.738.AE[02]) - VAR - 461548 - BUCKET CYLINDER, LINES (ARM L=2.5M)

Запчасти Case CX250D LC (35.738.AE[02]) - VAR - 461548 - BUCKET CYLINDER, LINES (ARM L=2.5M) (35) - HYDRAULIC SYSTEMS

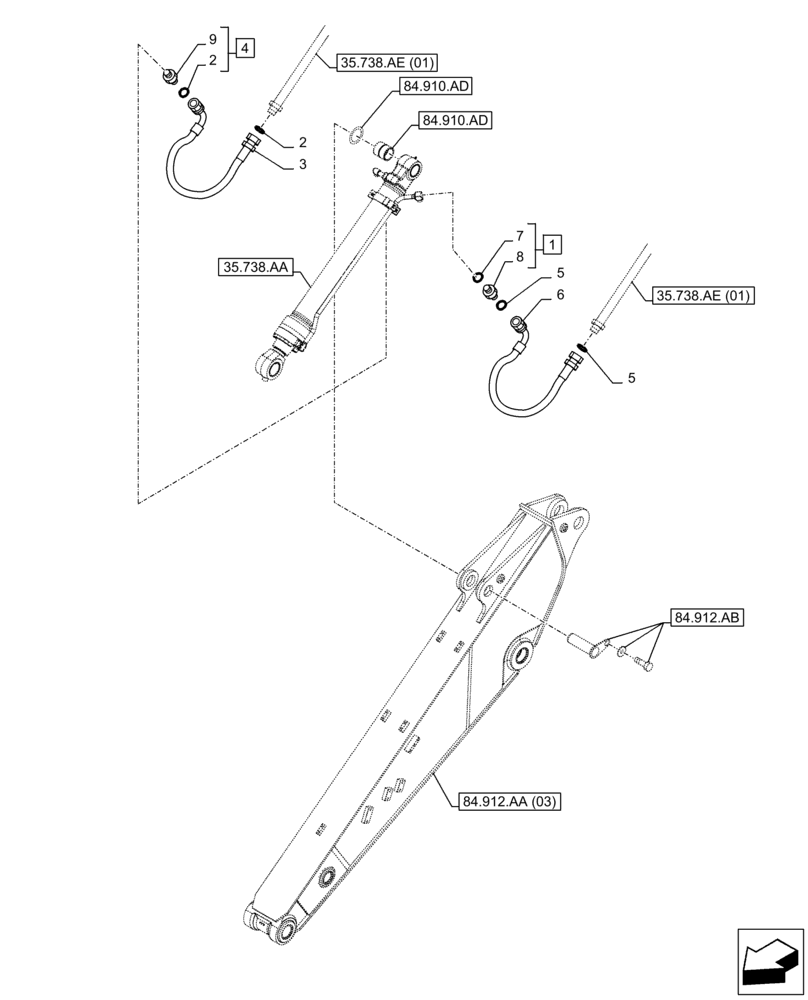

Схема запчастей Case CX250D LC - (35.738.AE[02]) - VAR - 461548 - BUCKET CYLINDER, LINES (ARM L=2.5M) (35) - HYDRAULIC SYSTEMS
6
3
4
9
2
35.738.ae (01)
8
2
1
5
84.912.ab
35.738.ae (01)
84.912.aa (03)
5
84.910.ad
84.910.ad
7
35.738.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1348

ADAPTER

ASSY, Incl 7, 8

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

KRV33220

HYDRAULIC HOSE

1700mm

1шт.

4

KHJ15840

ADAPTER

ASSY, Incl 2, 9

1шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

6

KRV33211

HYDRAULIC HOSE

1700mm

1шт.

7

154503A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.
