(35.738.AE[01]) - VAR - 461548, 781149, 781178 - BUCKET CYLINDER, LINES

Запчасти Case CX250D LC (35.738.AE[01]) - VAR - 461548, 781149, 781178 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

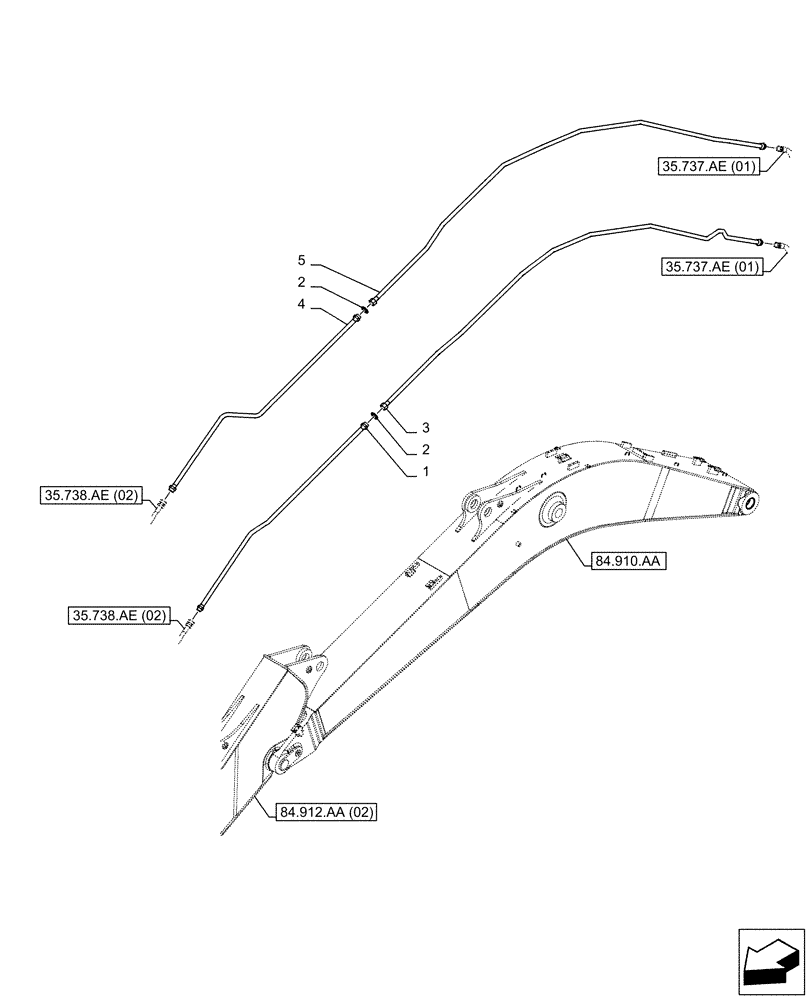

Схема запчастей Case CX250D LC - (35.738.AE[01]) - VAR - 461548, 781149, 781178 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.737.ae (01)
3
4
1
2
2
5
84.912.aa (02)
35.738.ae (02)
35.738.ae (02)
84.910.aa
35.737.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV31210

PIPE

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

KBV23551

HYD TUBE

1шт.

4

KBV31220

PIPE

1шт.

5

KBV23571

HYD TUBE

1шт.
