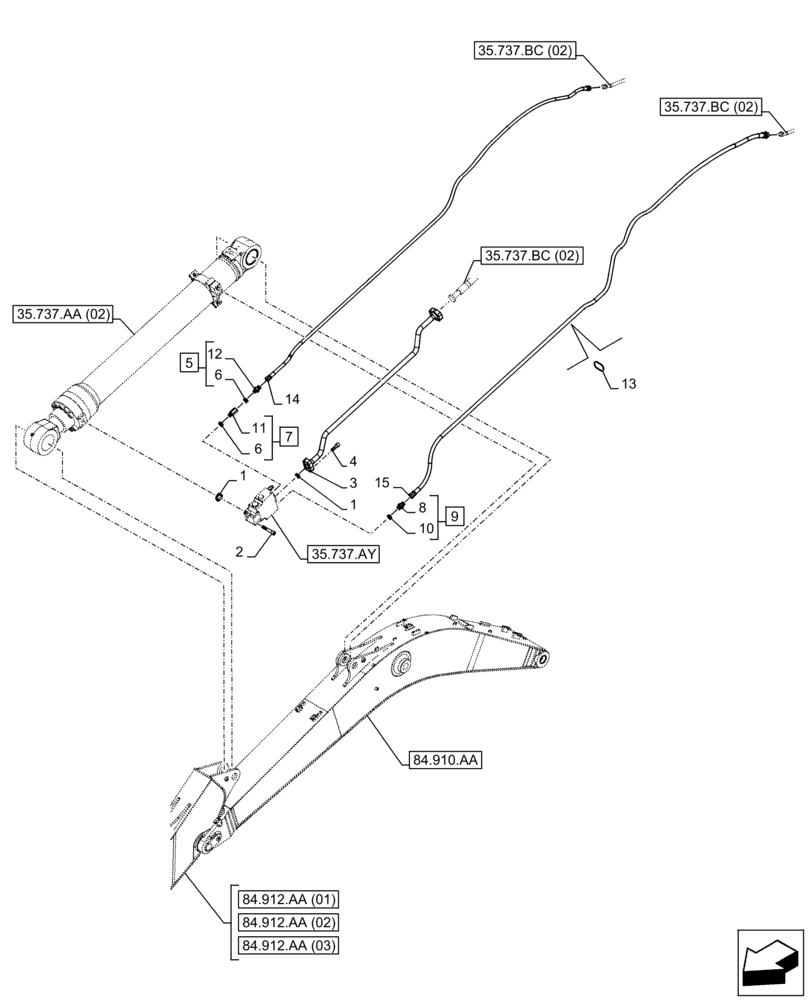

Запчасти Case CX250D LC (35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

155211A1

O-RING

2шт.

2

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

3

KBV34140

PIPE

1шт.

4

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

5

152747A1

ADAPTER

ASSY, Incl 6, 12

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

162525A1

STUD

ASSY, Incl 6, 11

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 8, 10

1шт.

10

154475A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

13

150496A1

MOUNTING CLIP

12шт.

14

KHJ1865

HYDRAULIC HOSE

2800mm

1шт.

15

KHJ17480

HYDRAULIC HOSE

2900mm

1шт.
