(35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX250D LC (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

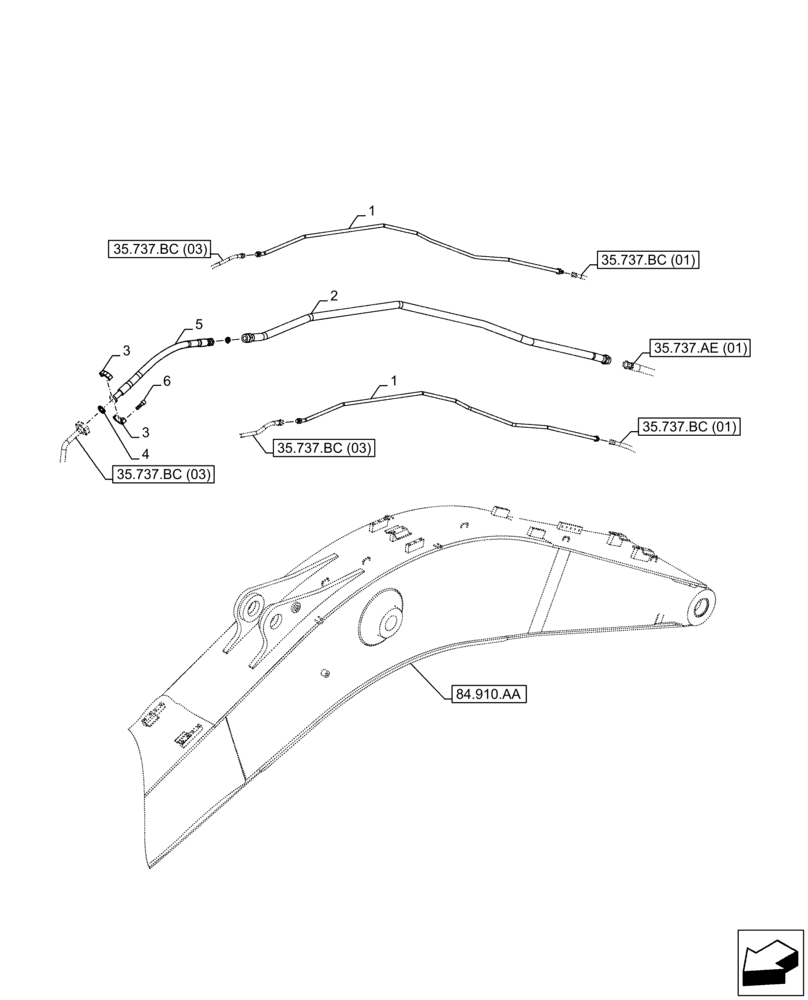

Схема запчастей Case CX250D LC - (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.737.bc (03)
2
1
3
35.737.bc (01)
84.910.aa
35.737.bc (01)
3
35.737.bc (03)
6
1
35.737.ae (01)
4
35.737.bc (03)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV25622

HYD TUBE

2шт.

2

KBV31191

PIPE

1шт.

3

150561A1

FLANGE

2шт.

4

155211A1

O-RING

1шт.

5

KBV31320

HYDRAULIC HOSE

900mm

1шт.

6

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

Выбрано товаров: 6
