(35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, LINES

Запчасти Case CX250D LC (35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

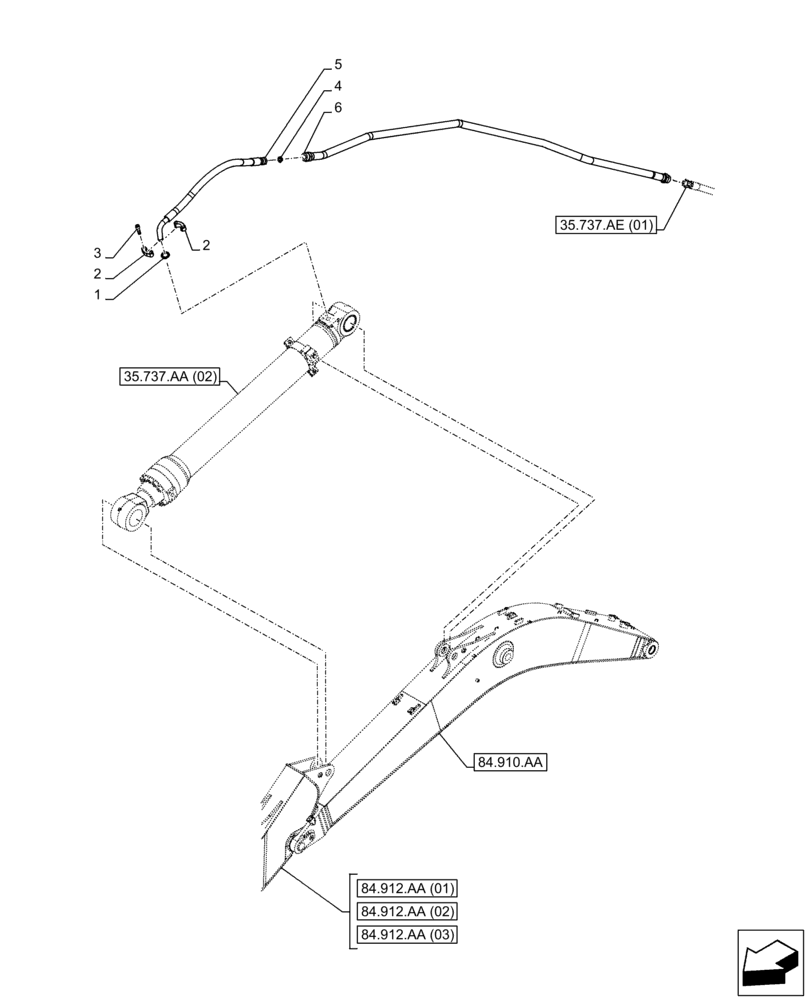

Схема запчастей Case CX250D LC - (35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
2
3
2
84.910.aa
84.912.aa (01)
84.912.aa (03)
35.737.aa (02)
84.912.aa (02)
6
1
35.737.ae (01)
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

155211A1

O-RING

1шт.

2

150561A1

FLANGE

2шт.

3

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

5

KBV31330

HYDRAULIC HOSE

1000mm

1шт.

6

KBV31201

PIPE

1шт.

Выбрано товаров: 6
