(35.737.AE[02]) - VAR - 461548, 781149, 781178 - ARM, CYLINDER, LINES

Запчасти Case CX250D LC (35.737.AE[02]) - VAR - 461548, 781149, 781178 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

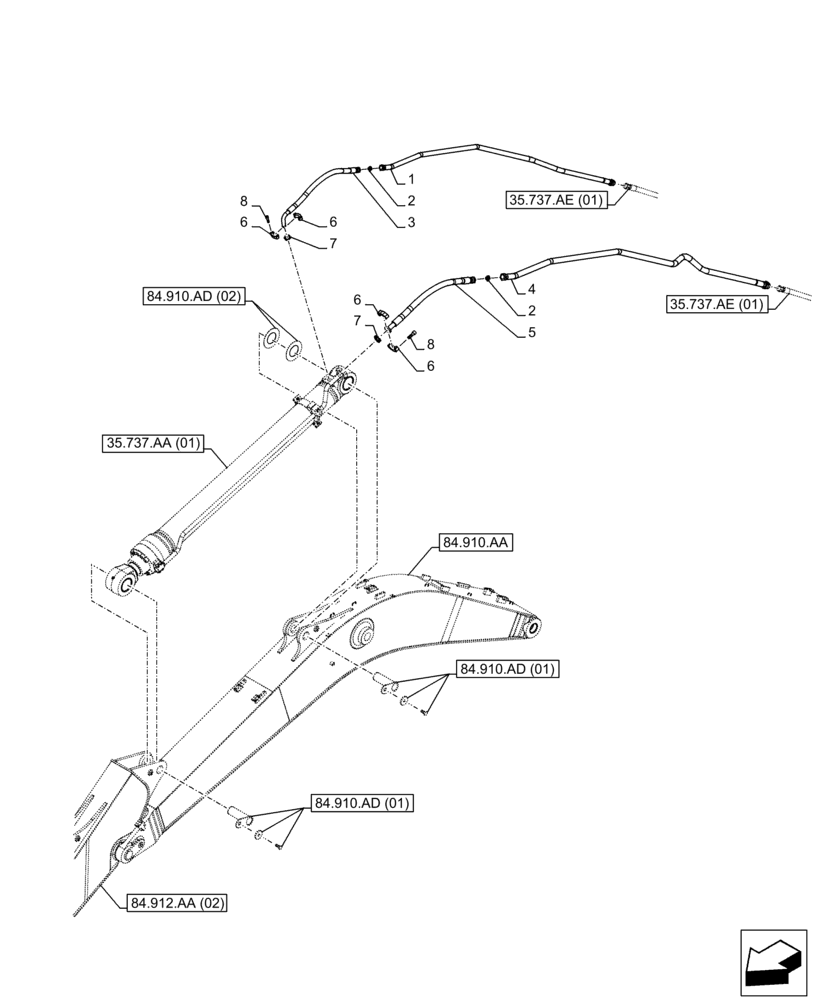

Схема запчастей Case CX250D LC - (35.737.AE[02]) - VAR - 461548, 781149, 781178 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
7
35.737.aa (01)
6
8
35.737.ae (01)
1
7
5
6
6
4
2
35.737.ae (01)
3
84.912.aa (02)
84.910.ad (01)
6
84.910.ad (02)
84.910.aa
84.910.ad (01)
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV31201

PIPE

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

KBV31330

HYDRAULIC HOSE

1000mm

1шт.

4

KBV31191

PIPE

1шт.

5

KBV31320

HYDRAULIC HOSE

900mm

1шт.

6

150561A1

FLANGE

4шт.

7

155211A1

O-RING

2шт.

8

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

8шт.

Выбрано товаров: 8
