(35.737.AE[01]) - ARM, CYLINDER, LINES

Запчасти Case CX250D LC (35.737.AE[01]) - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

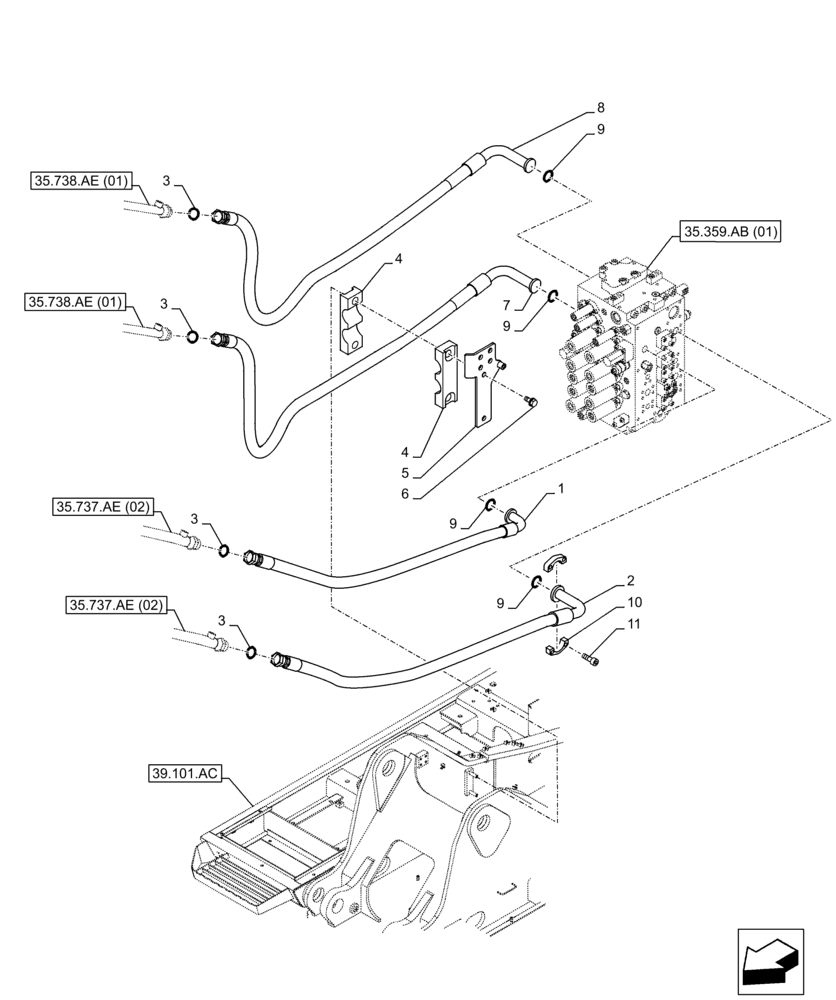

Схема запчастей Case CX250D LC - (35.737.AE[01]) - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
3
35.738.ae (01)
35.737.ae (02)
6
3
2
39.101.ac
9
9
1
10
8
35.737.ae (02)
11
9
7
4
4
35.359.ab (01)
35.738.ae (01)
9
5
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ19360

HYDRAULIC HOSE

1шт.

2

KBJ19370

HYDRAULIC HOSE

1шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

4

KBJ14410

HOSE CLAMP

2шт.

5

KBJ24300

PLATE

1шт.

6

166052A1

BOLT

2шт.

7

KBJ14381

HYDRAULIC HOSE

1шт.

8

KBJ22520

HYDRAULIC HOSE

1шт.

9

155211A1

O-RING

4шт.

10

153459A1

FLANGE

8шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

Выбрано товаров: 11
