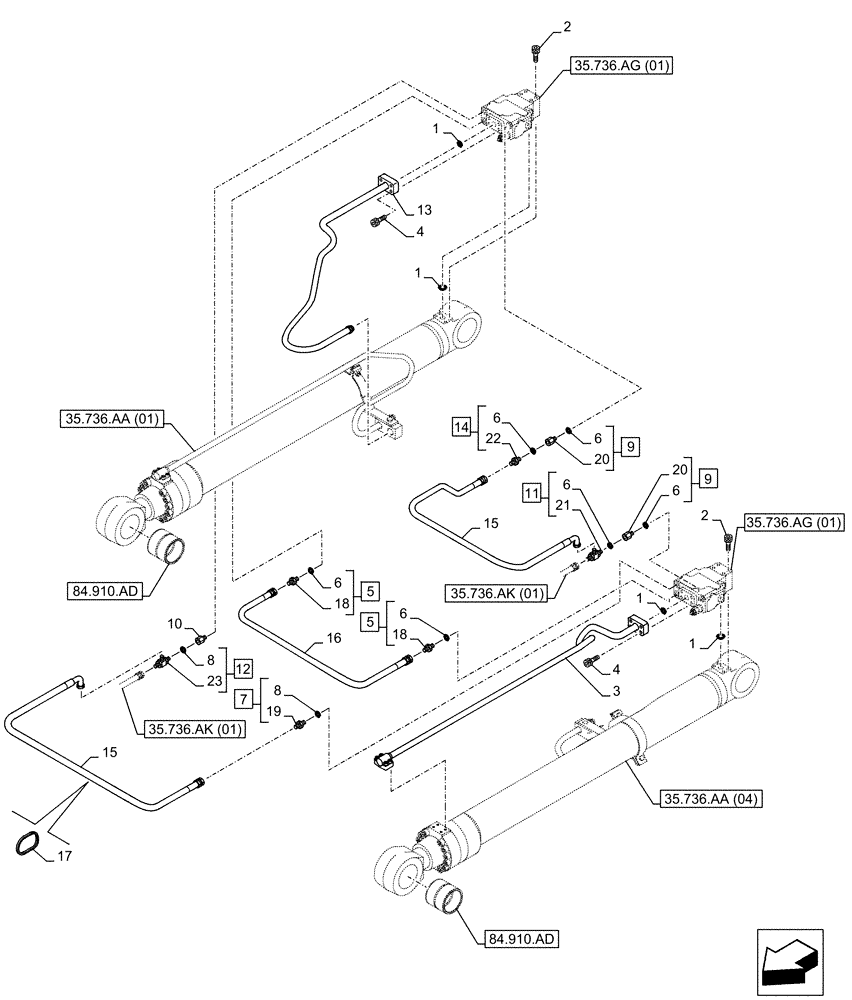

Запчасти Case CX250D LC (35.736.AK[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

155210A1

O-RING

4шт.

2

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

8шт.

3

KBV25650

HYD TUBE

1шт.

4

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6 (Qty 1), 18

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

12шт.

7

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 8 (Qty 1), 19

1шт.

8

154475A1

O-RING

9шт.

9

162525A1

STUD

ASSY, Incl 6 (Qty 1), 20

3шт.

10

KHV0373

STUD

1шт.

11

162827A1

TEE

ASSY, Incl 6 (Qty 1), 21

2шт.

12

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 8 (Qty 1), 23

1шт.

13

KBV25660

HYD TUBE

1шт.

14

152747A1

ADAPTER

ASSY, Incl 6 (Qty 1), 22

1шт.

15

KBV16010

HYDRAULIC HOSE

2шт.

16

KHJ15870

HYDRAULIC HOSE

1шт.

17

150071A1

MOUNTING CLIP

6шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

19

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

20

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

3шт.

21

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 11

2шт.

22

NSS

NOT SOLD SEPARAT

Adapter, Incl in 14

1шт.

23

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 12

1шт.
