(35.736.AG[01]) - VAR - 481064 - LIFT CYLINDER, SAFETY VALVE

Запчасти Case CX250D LC (35.736.AG[01]) - VAR - 481064 - LIFT CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

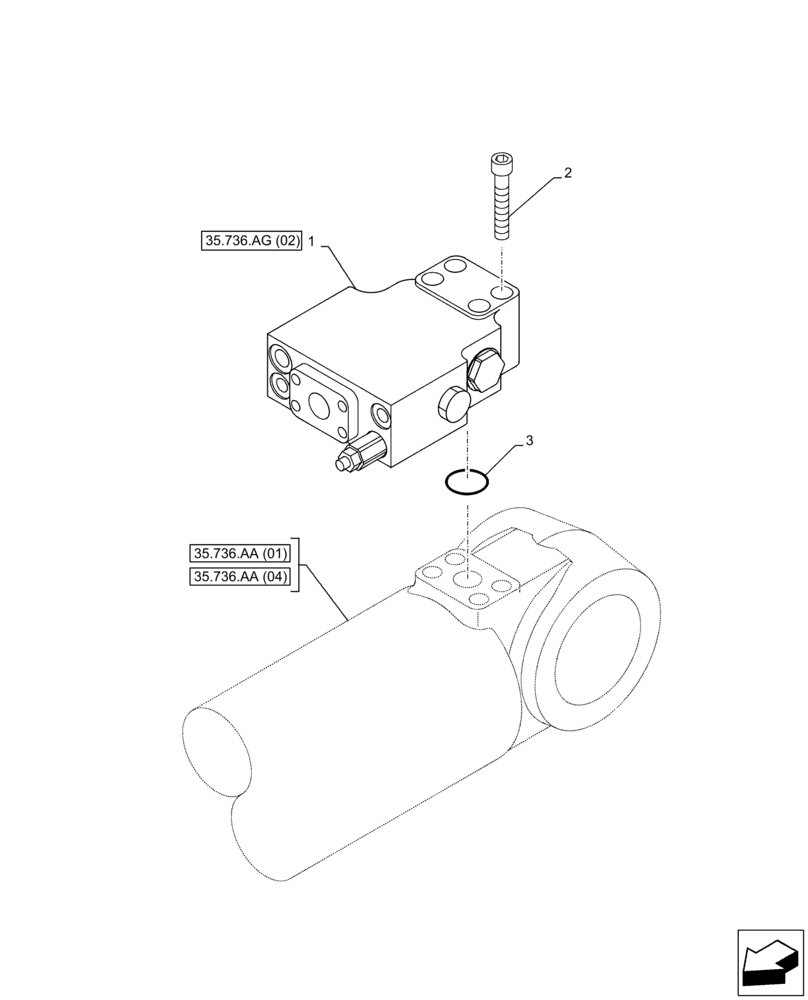

Схема запчастей Case CX250D LC - (35.736.AG[01]) - VAR - 481064 - LIFT CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
35.736.aa (01)
3
2
1
35.736.ag (02)
35.736.aa (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV11110

VALVE SECTION

2шт.

2

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

3

161097A1

O-RING

1шт.
