(35.734.AD[01]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE

Запчасти Case CX250D LC (35.734.AD[01]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

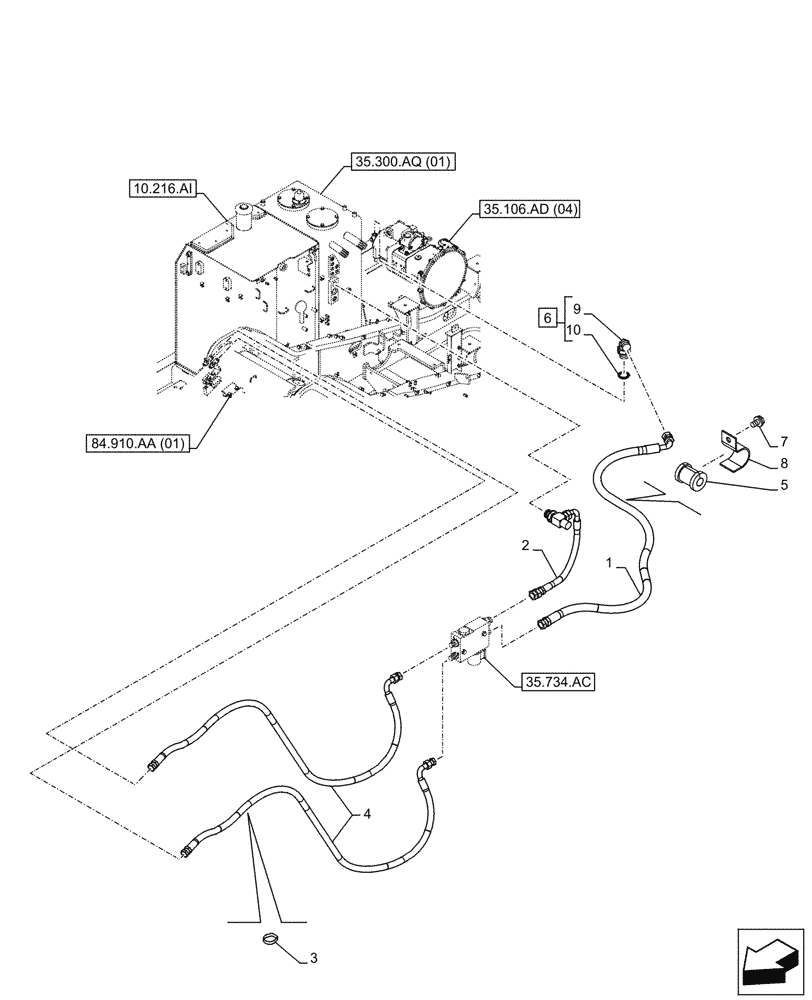

Схема запчастей Case CX250D LC - (35.734.AD[01]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
35.300.aq (01)
8
5
3
10
1
4
9
2
6
7
84.910.aa (01)
35.106.ad (04)
35.734.ac
10.216.ai
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWJ11020

HYDRAULIC HOSE,9.52 mm ID x 1200.00 mm

1шт.

2

KHJ1388

HYDRAULIC HOSE,9.52 mm ID x 320.00 mm

1шт.

3

150071A1

MOUNTING CLIP

5шт.

4

KHV13040

HYDRAULIC HOSE

1450mm

2шт.

5

KHJ33450

HOSE CLAMP

1шт.

6

KHJ28590

ELBOW

, Serial Range: -C0015

1шт.

6

KHJ28710

ELBOW

ASSY, Incl 9 - 10, Start Serial: D0015

1шт.

7

166351A1

BOLT,Sems, M10 x 20mm

1шт.

8

KHJ2025

CLAMP

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6, Start Serial: D0015

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

, Start Serial: D0015

1шт.
