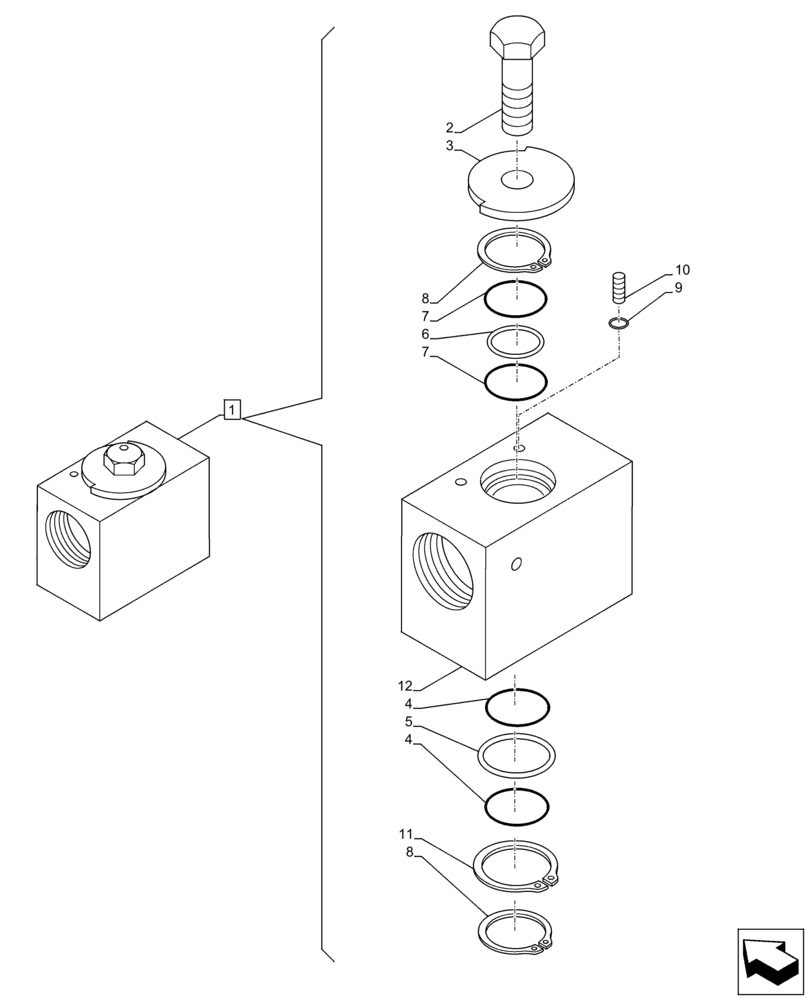

Запчасти Case CX250D LC (35.360.AL[02]) - VAR - 461863 - ARM, STOP, VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHV10440

VALVE

ASSY, Incl 2 - 12

3шт.

2

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

4

154508A1

O-RING

2шт.

5

153986A1

BACK-UP RING

1шт.

6

153976A1

BACK-UP RING

1шт.

7

154495A1

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, Incl In 1

1шт.

9

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.
