(35.360.AK[12]) - VAR - 461561, 461563, 461865, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, PLUGS

Запчасти Case CX250D LC (35.360.AK[12]) - VAR - 461561, 461563, 461865, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, PLUGS (35) - HYDRAULIC SYSTEMS

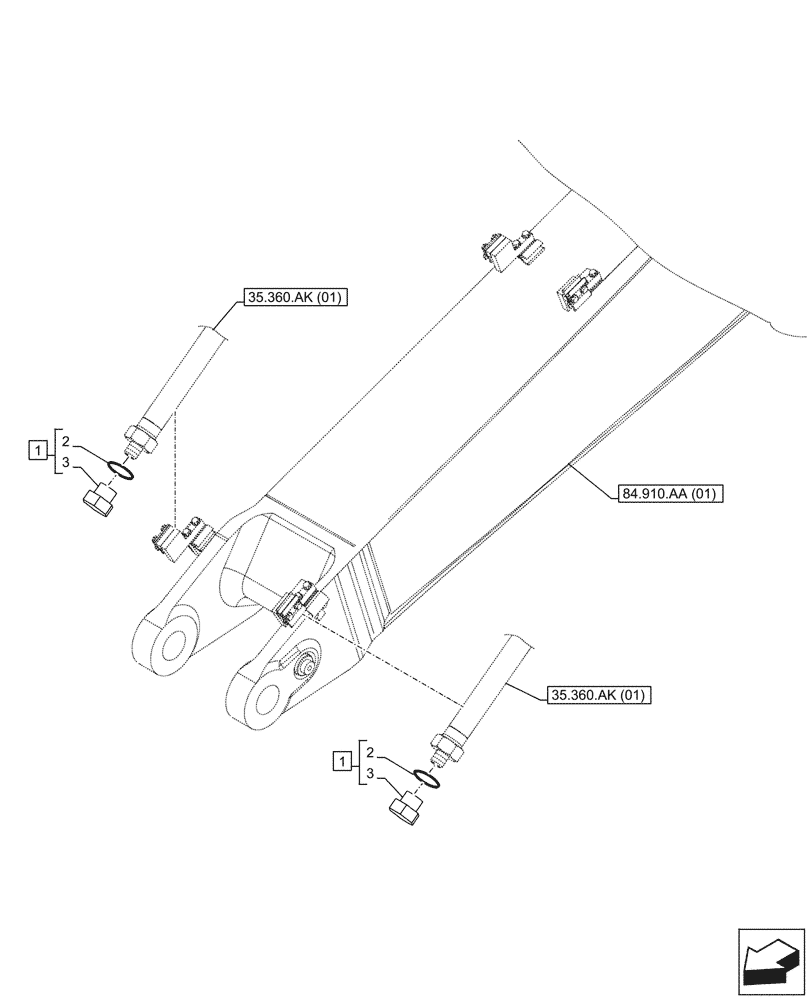

Схема запчастей Case CX250D LC - (35.360.AK[12]) - VAR - 461561, 461563, 461865, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, PLUGS (35) - HYDRAULIC SYSTEMS
84.910.aa (01)
3
2
1
2
3
1
35.360.ak (01)
35.360.ak (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1899

PLUG

ASSY, Incl 2, 3

2шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.
