(35.360.AK[11]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (ARM L=3.5M)

Запчасти Case CX250D LC (35.360.AK[11]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (ARM L=3.5M) (35) - HYDRAULIC SYSTEMS

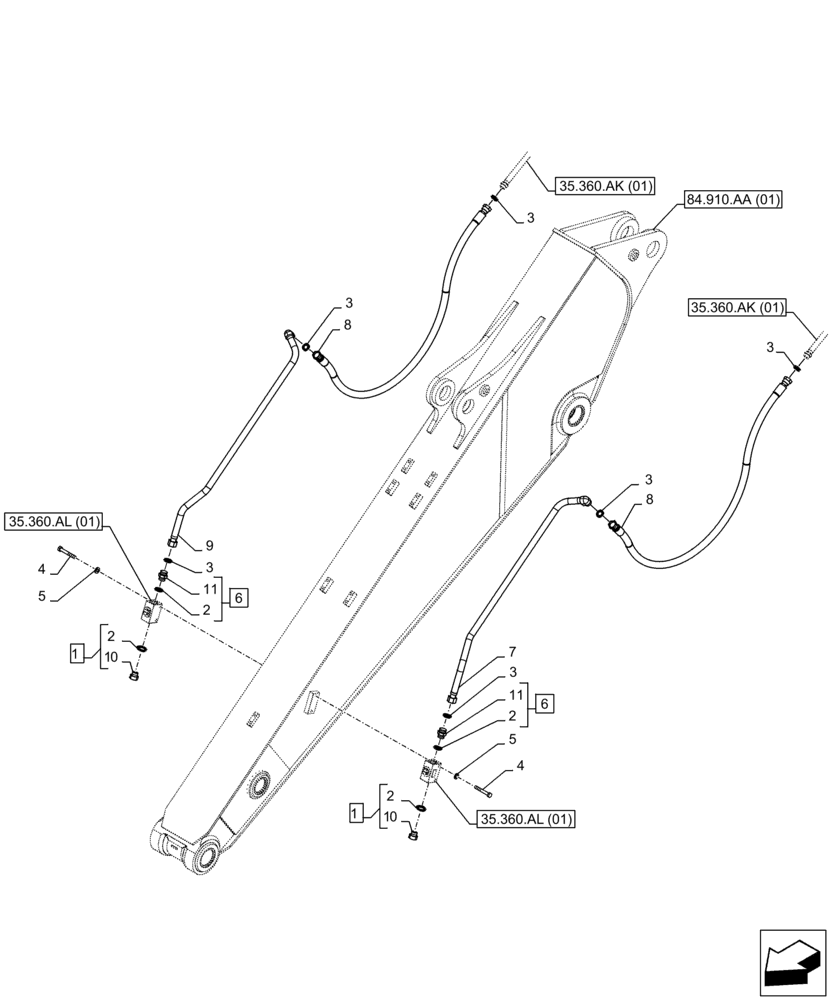

Схема запчастей Case CX250D LC - (35.360.AK[11]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (ARM L=3.5M) (35) - HYDRAULIC SYSTEMS
8
84.910.aa (01)
2
8
11
5
3
1
4
35.360.ak (01)
3
6
9
35.360.al (01)
35.360.ak (01)
4
35.360.al (01)
2
3
3
1
3
11
2
5
7
1
3
10
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162659A1

PLUG

ASSY, Incl 2,10

2шт.

2

154523A1

O-RING

4шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

4

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1349

ADAPTER

ASSY, Incl 2,11

2шт.

7

KBV16680

HYD TUBE,26 mm ID x 34 mm OD

1шт.

8

KBV34690

HYDRAULIC HOSE

2шт.

9

KBV16690

HYD TUBE,26 mm ID x 34 mm OD

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Adapter, Incl in 6

1шт.

Выбрано товаров: 11
