(35.360.AK[10]) - VAR - 461871 - BOOM, LINE, HAMMER, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (35.360.AK[10]) - VAR - 461871 - BOOM, LINE, HAMMER, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

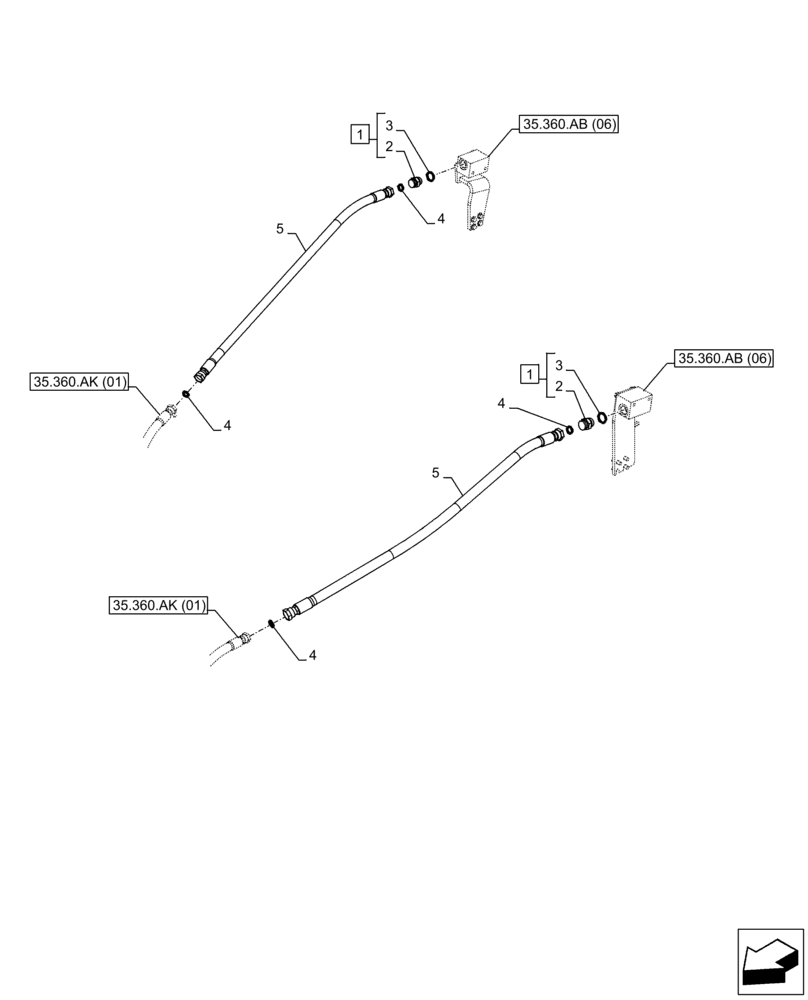

Схема запчастей Case CX250D LC - (35.360.AK[10]) - VAR - 461871 - BOOM, LINE, HAMMER, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
5
3
35.360.ak (01)
1
35.360.ab (06)
4
3
4
5
35.360.ak (01)
35.360.ab (06)
4
2
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1349

ADAPTER

ASSY, Incl 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

3

154523A1

O-RING

2шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

5

KSJ13741

HYDRAULIC HOSE

2шт.

Выбрано товаров: 5
