(35.360.AK[09]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (35.360.AK[09]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

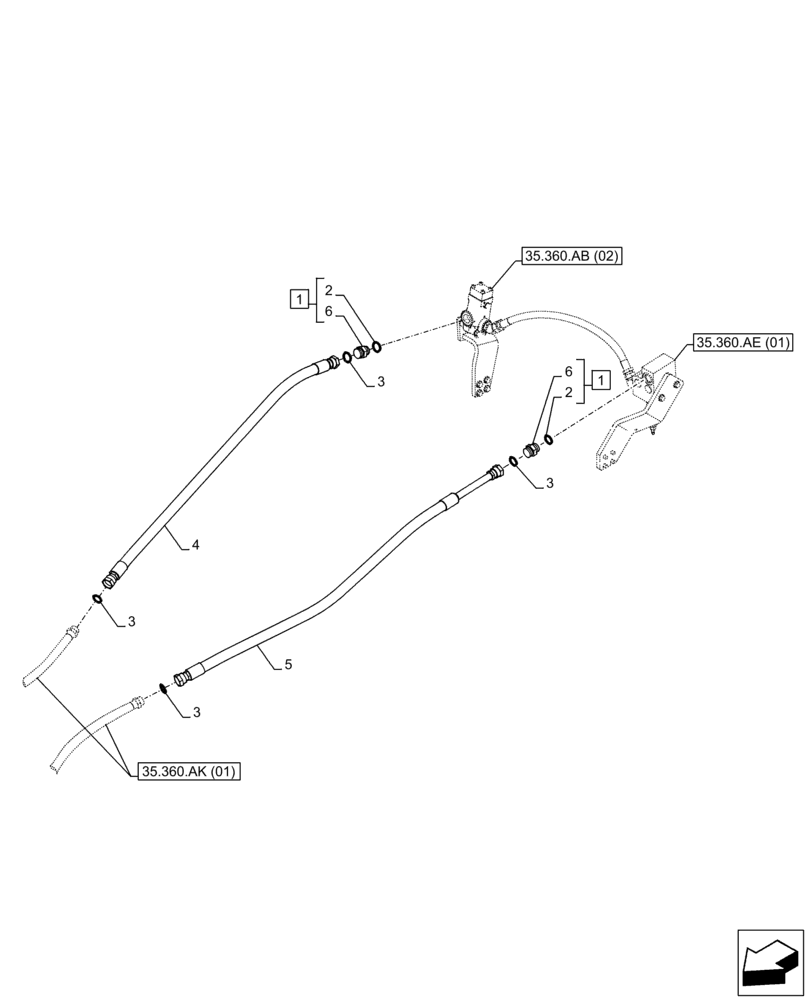

Схема запчастей Case CX250D LC - (35.360.AK[09]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
3
6
6
35.360.ak (01)
3
2
2
35.360.ab (02)
4
5
35.360.ae (01)
1
1
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1349

ADAPTER

ASSY, Incl 2 (Qty 1), 6

2шт.

2

154523A1

O-RING

2шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

4

KSJ13741

HYDRAULIC HOSE

1шт.

5

KRJ29370

HYDRAULIC HOSE

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

Выбрано товаров: 0
