(35.360.AK[08]) - VAR - 461865 - BOOM, LINE, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (35.360.AK[08]) - VAR - 461865 - BOOM, LINE, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

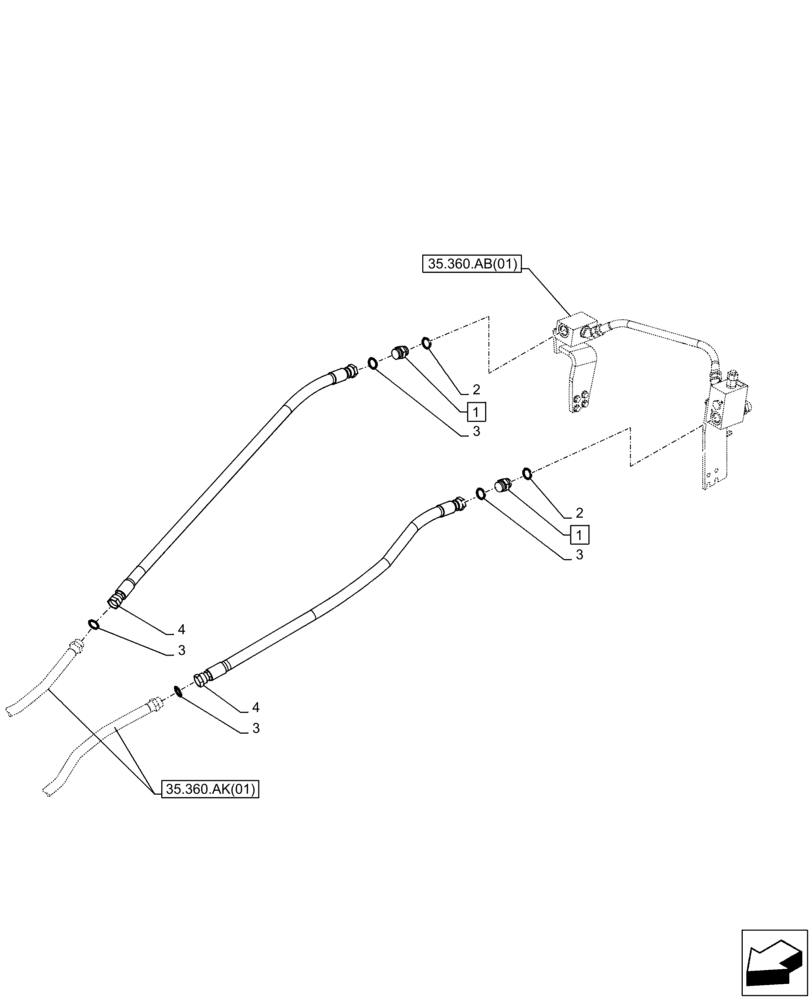

Схема запчастей Case CX250D LC - (35.360.AK[08]) - VAR - 461865 - BOOM, LINE, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
1
4
1
3
35.360.ab(01)
3
3
3
35.360.ak(01)
2
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1349

ADAPTER

ASSY, Incl 2

2шт.

2

154523A1

O-RING

2шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

4

KSJ13741

HYDRAULIC HOSE

27mm ID x 1300mm

2шт.
