(35.360.AK[06]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.5M)

Запчасти Case CX250D LC (35.360.AK[06]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.5M) (35) - HYDRAULIC SYSTEMS

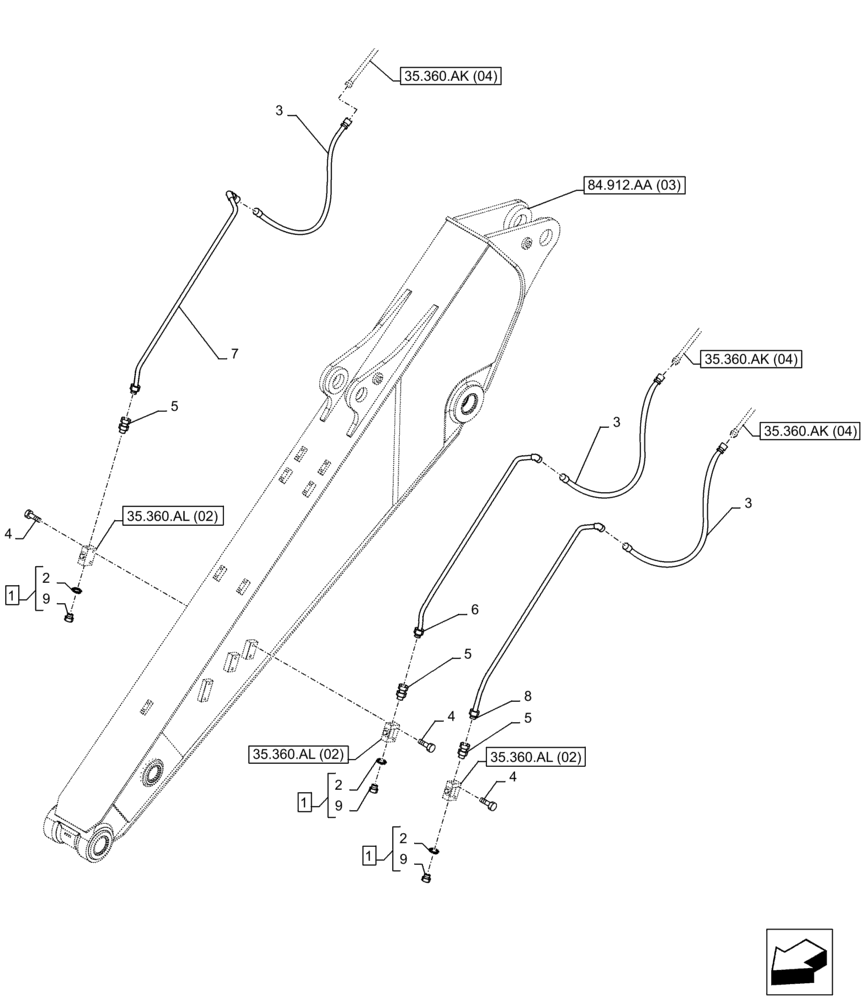

Схема запчастей Case CX250D LC - (35.360.AK[06]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.5M) (35) - HYDRAULIC SYSTEMS
1
4
9
3
7
1
5
9
3
9
2
84.912.aa (03)
3
5
2
35.360.al (02)
35.360.ak (04)
35.360.ak (04)
5
8
2
1
35.360.al (02)
35.360.al (02)
4
4
6
35.360.ak (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, Incl 2, 9

3шт.

2

154487A1

O-RING

3шт.

3

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

3шт.

6

KBV24220

HYD TUBE

1шт.

7

KBV24230

HYD TUBE

1шт.

8

KBV24240

HYD TUBE

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.
