(35.360.AK[05]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.0M)

Запчасти Case CX250D LC (35.360.AK[05]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

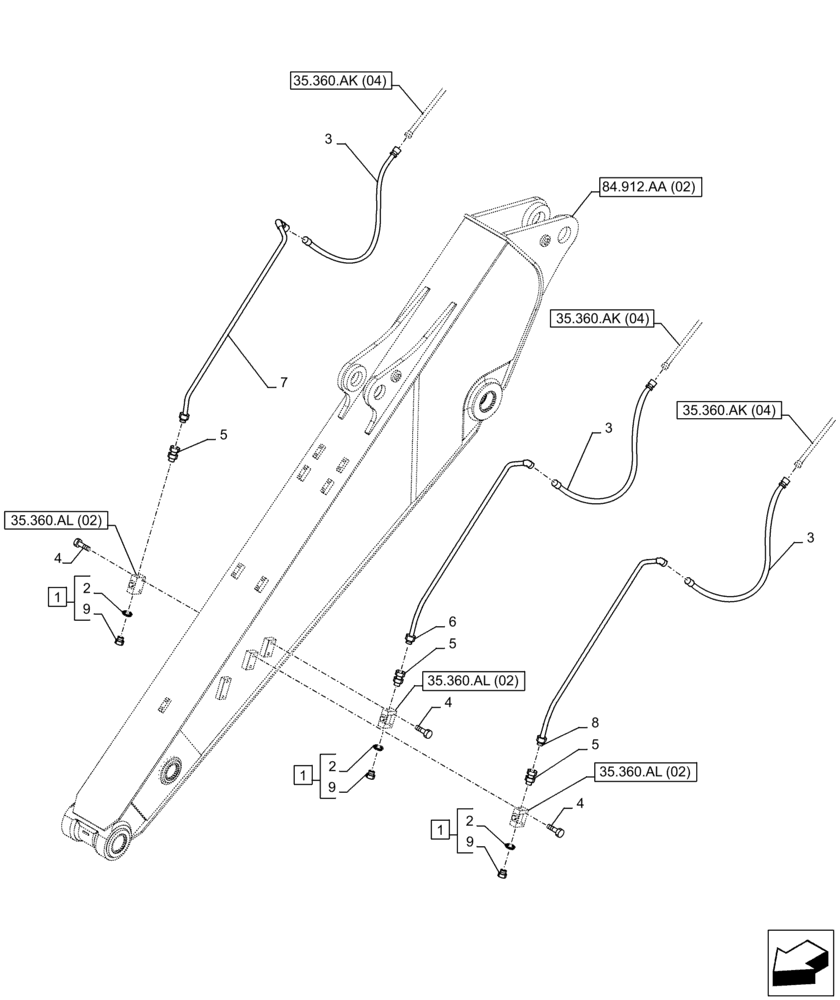

Схема запчастей Case CX250D LC - (35.360.AK[05]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS
5
3
7
35.360.ak (04)
4
1
9
9
35.360.ak (04)
3
2
6
5
1
1
35.360.al (02)
4
8
35.360.ak (04)
84.912.aa (02)
3
35.360.al (02)
2
5
2
4
9
35.360.al (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, Incl 2, 9

3шт.

2

154487A1

O-RING

3шт.

3

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

3шт.

6

KBV16710

HYD TUBE,26 mm ID x 34 mm OD

1шт.

7

KBV16720

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

8

KBV16730

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.
