(35.360.AK[03]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=2.5M)

Запчасти Case CX250D LC (35.360.AK[03]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=2.5M) (35) - HYDRAULIC SYSTEMS

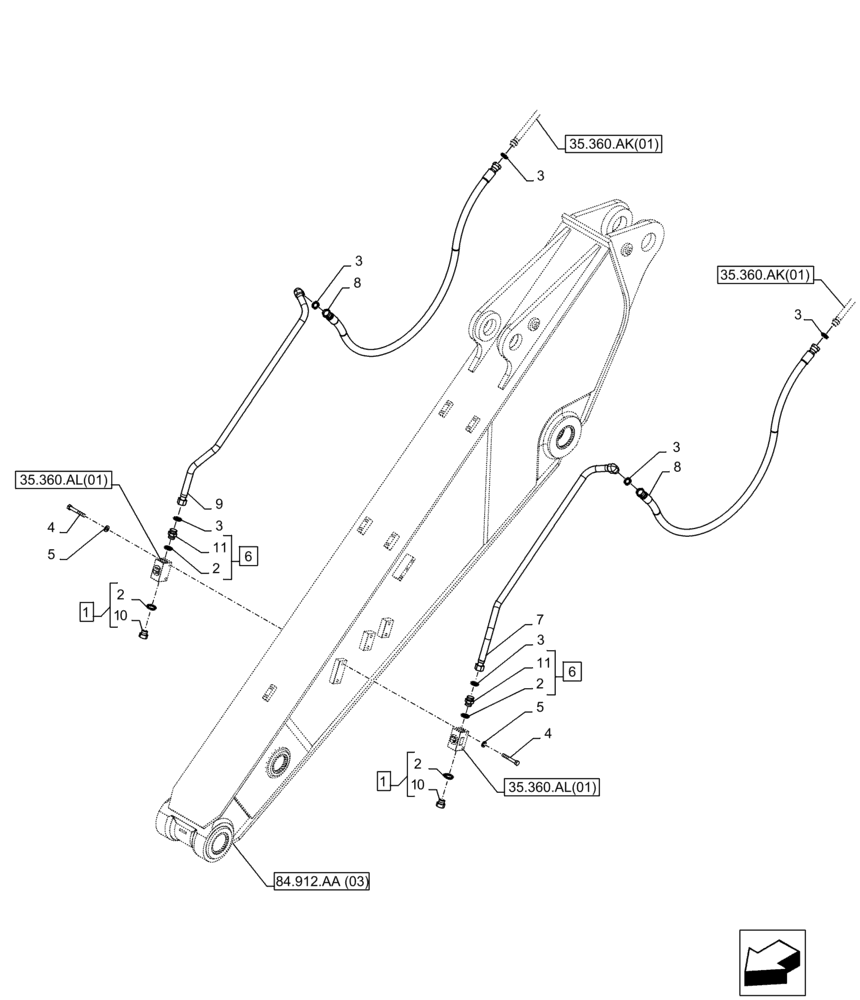

Схема запчастей Case CX250D LC - (35.360.AK[03]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=2.5M) (35) - HYDRAULIC SYSTEMS
6
6
5
3
9
8
35.360.al(01)
35.360.ak(01)
4
2
11
2
5
35.360.al(01)
3
1
10
7
10
3
11
2
3
35.360.ak(01)
8
2
3
4
1
84.912.aa (03)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162659A1

PLUG

ASSY, Incl 2, 10

2шт.

2

154523A1

O-RING

4шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

4

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1349

ADAPTER

ASSY, Incl 2, 11

2шт.

7

KBV24200

HYD TUBE

1шт.

8

KRV19740

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

2шт.

9

KBV24210

HYD TUBE

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Adapter, Incl in 6

2шт.

Выбрано товаров: 11
