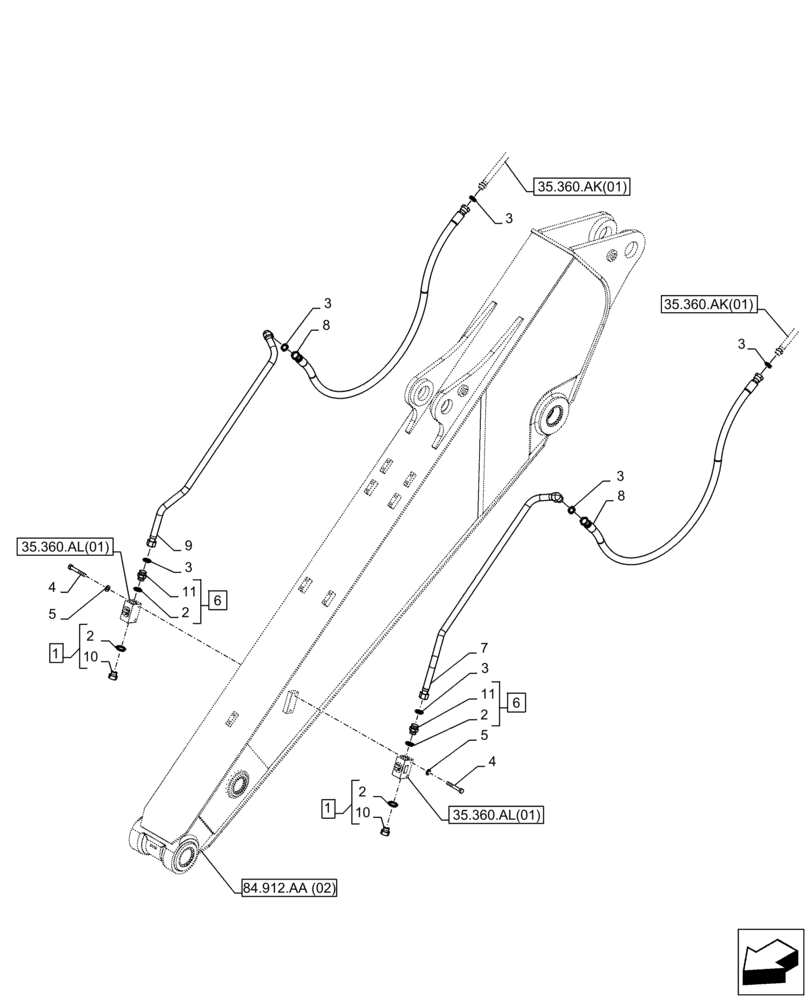

Запчасти Case CX250D LC (35.360.AK[02]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

1

162659A1

PLUG

ASSY, Incl 2, 10

2шт.

2

154523A1

O-RING

4шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

4

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1349

ADAPTER

ASSY, Incl 2, 11

2шт.

7

KBV16680

HYD TUBE,26 mm ID x 34 mm OD

1шт.

8

KRV19740

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

2шт.

9

KBV16690

HYD TUBE,26 mm ID x 34 mm OD

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.
