(35.360.AJ[04]) - VAR - 461869 - SOLENOID VALVE, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX250D LC (35.360.AJ[04]) - VAR - 461869 - SOLENOID VALVE, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

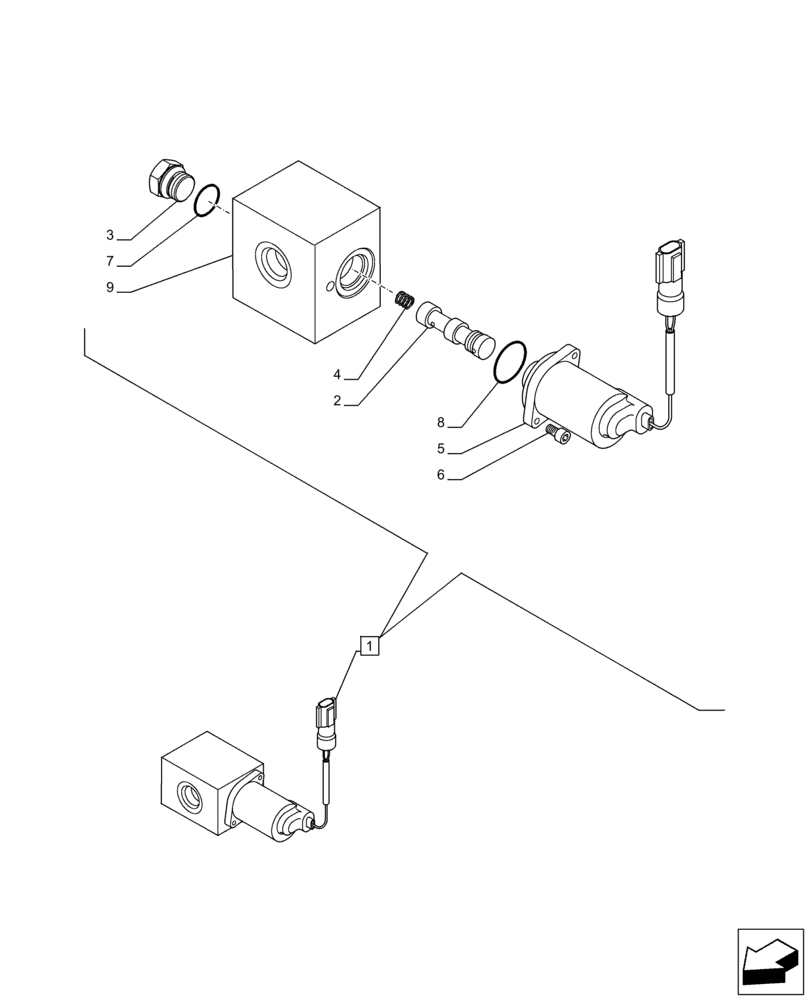

Схема запчастей Case CX250D LC - (35.360.AJ[04]) - VAR - 461869 - SOLENOID VALVE, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
3
6
5
9
2
4
7
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162538A1

VALVE

ASSY, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

3

155456A1

PLUG

1шт.

4

LSC0278

COMPRESSION SPRING

1шт.

5

CDP0873

SOLENOID VALVE

1шт.

6

160298A1

BOLT,Hex Skt

4шт.

7

154462A1

O-RING

1шт.

8

154482A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

Выбрано товаров: 9
