(35.360.AJ[03]) - VAR - 461869 - SOLENOID VALVE, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (35.360.AJ[03]) - VAR - 461869 - SOLENOID VALVE, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

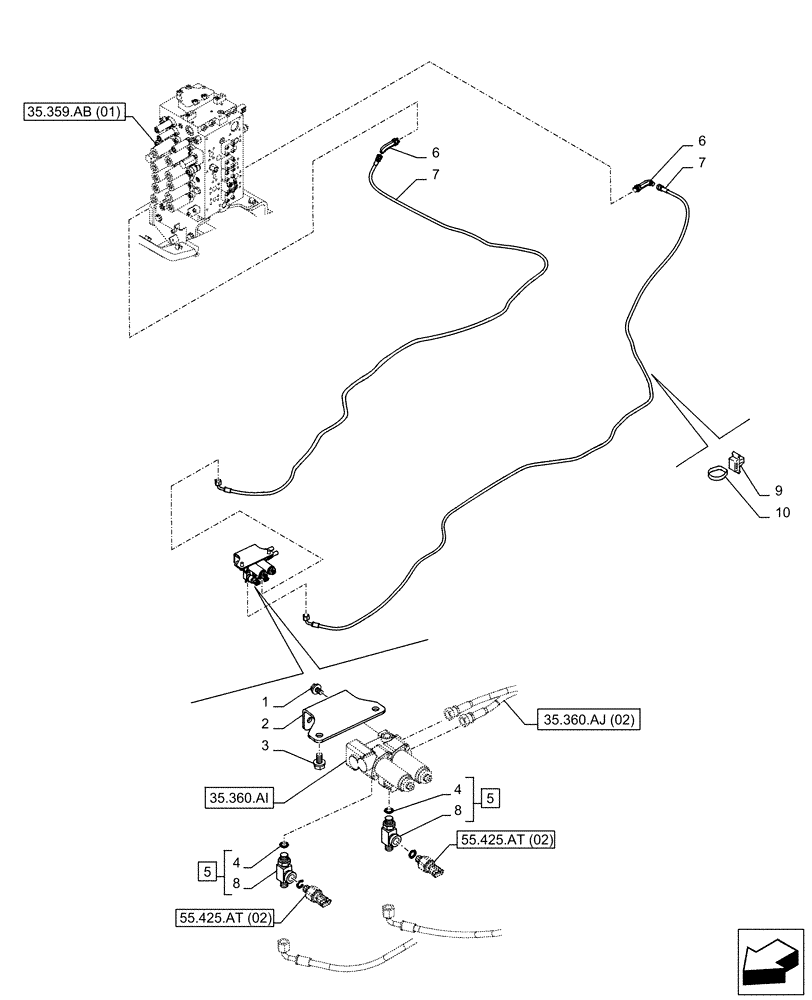

Схема запчастей Case CX250D LC - (35.360.AJ[03]) - VAR - 461869 - SOLENOID VALVE, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
6
7
9
7
4
1
3
8
10
8
6
5
2
5
4
55.425.at (02)
55.425.at (02)
35.360.ai
35.360.aj (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166345A1

BOLT

2шт.

2

KHJ28770

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

167666A1

FITTING

ASSY, Incl 4, 8

2шт.

6

KHJ28880

ELBOW

2шт.

7

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

2шт.

8

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 5

2шт.

9

KHR10220

MOUNTING CLIP

3шт.

10

150496A1

MOUNTING CLIP

3шт.
