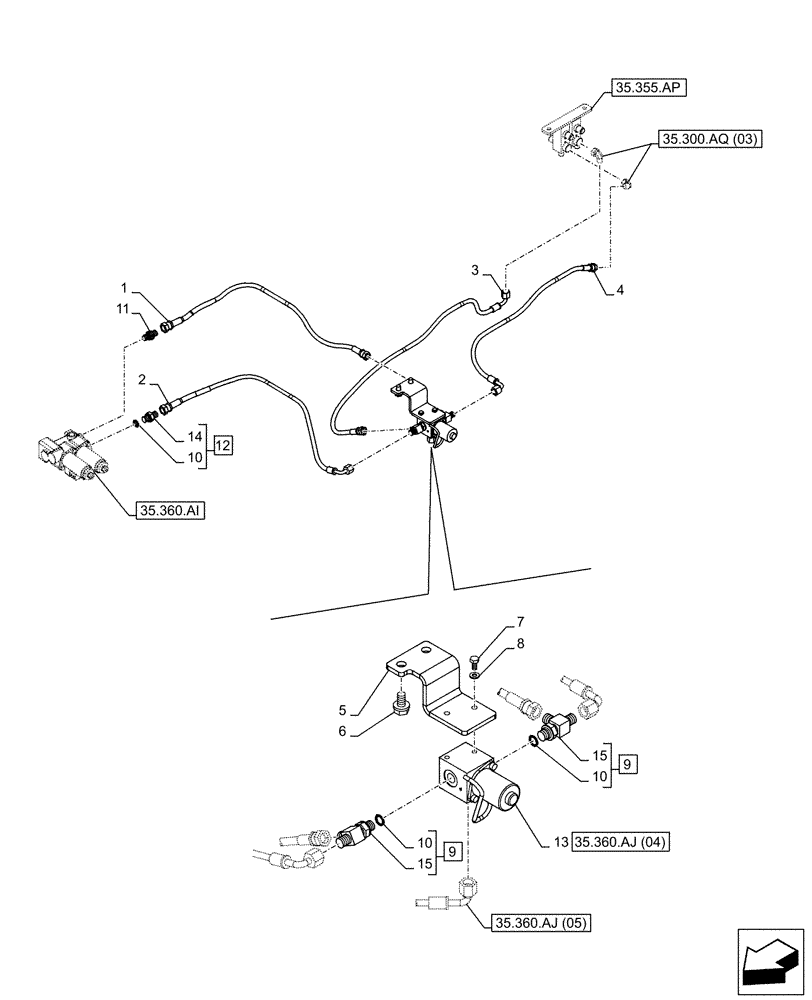

Запчасти Case CX250D LC (35.360.AJ[02]) - VAR - 461869 - SOLENOID VALVE, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2163

HOSE

1шт.

2

KHJ31500

HOSE

1шт.

3

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

1шт.

4

KHJ2195

HOSE

1шт.

5

KHJ30520

BRACKET

1шт.

6

166351A1

BOLT,Sems, M10 x 20mm

2шт.

7

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

, Serial Range: -C0141

2шт.

7

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

, Start Serial: D0141

2шт.

8

183-106VR

SPRING WASHER

2шт.

9

159497A1

TEE

ASSY, Incl 10 (Qty 1), 15

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

11

161841A1

HYD CONNECTOR

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 10 (Qty 1), 14

1шт.

13

162538A1

VALVE

ASSY

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

15

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 9

1шт.
