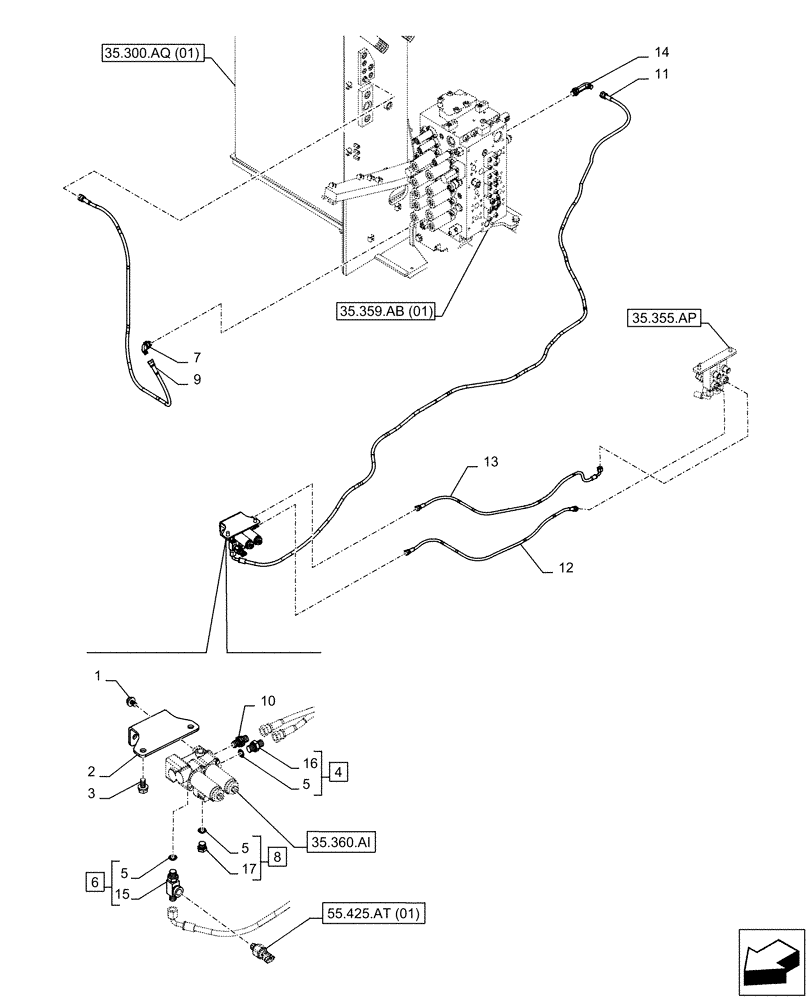

Запчасти Case CX250D LC (35.360.AJ[01]) - VAR - 461865 - SOLENOID VALVE, LINE, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

166345A1

BOLT

2шт.

2

KHJ28770

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5, 16

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

167666A1

FITTING

ASSY, Incl 5, 15

1шт.

7

KHJ28690

ELBOW

1шт.

8

159002A1

PLUG

ASSY, Incl 5, 17

1шт.

9

KHJ2055

HOSE

1шт.

10

161841A1

HYD CONNECTOR

1шт.

11

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

1шт.

12

KHJ2092

HOSE

1шт.

13

KHJ2051

HOSE

1шт.

14

KHJ28880

ELBOW

1шт.

15

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 6

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.
