(35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

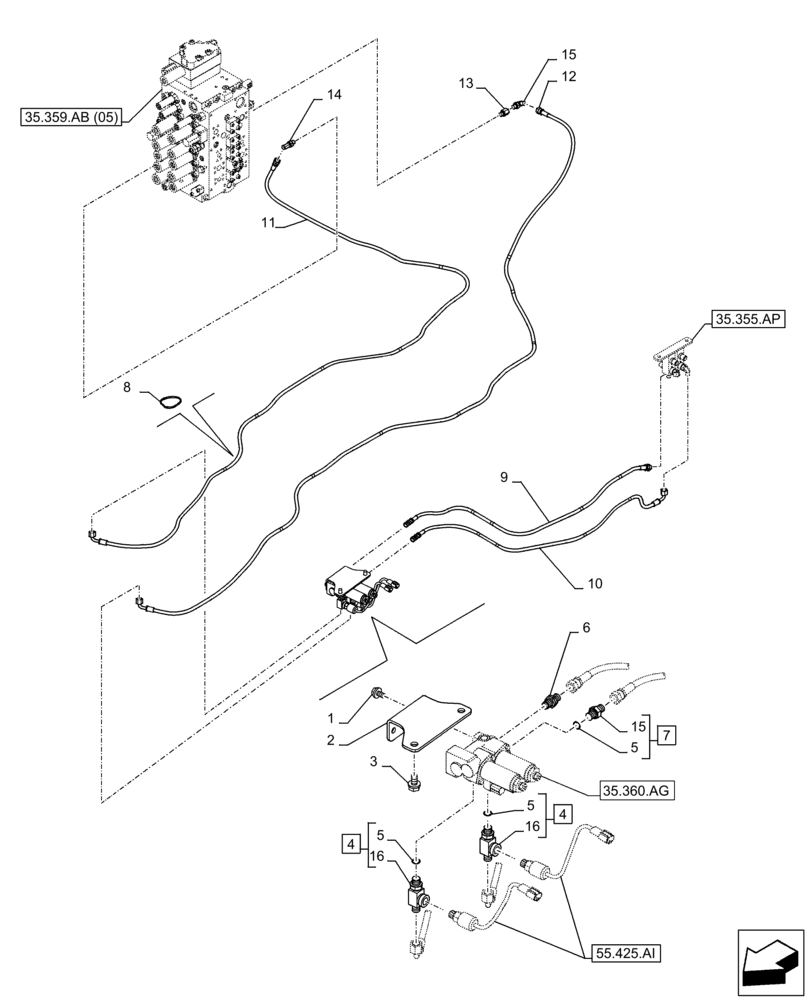

Схема запчастей Case CX250D LC - (35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
16
4
1
8
12
16
10
5
11
4
15
5
5
35.359.ab (05)
15
9
35.360.ag
13
14
35.355.ap
3
55.425.ai
7
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166345A1

BOLT

2шт.

2

KHJ28770

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

167666A1

FITTING

ASSY, Incl 5, 16

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

161841A1

HYD CONNECTOR

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5, 15

1шт.

8

150496A1

MOUNTING CLIP

4шт.

9

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

1шт.

10

KHJ2088

HOSE

850mm

1шт.

11

KHJ17840

HOSE

3700mm

1шт.

12

KHJ16300

HOSE

1шт.

13

KHJ13640

STUD

3650mm

1шт.

14

KHJ28580

ELBOW

2шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

16

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 4

1шт.
