(35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

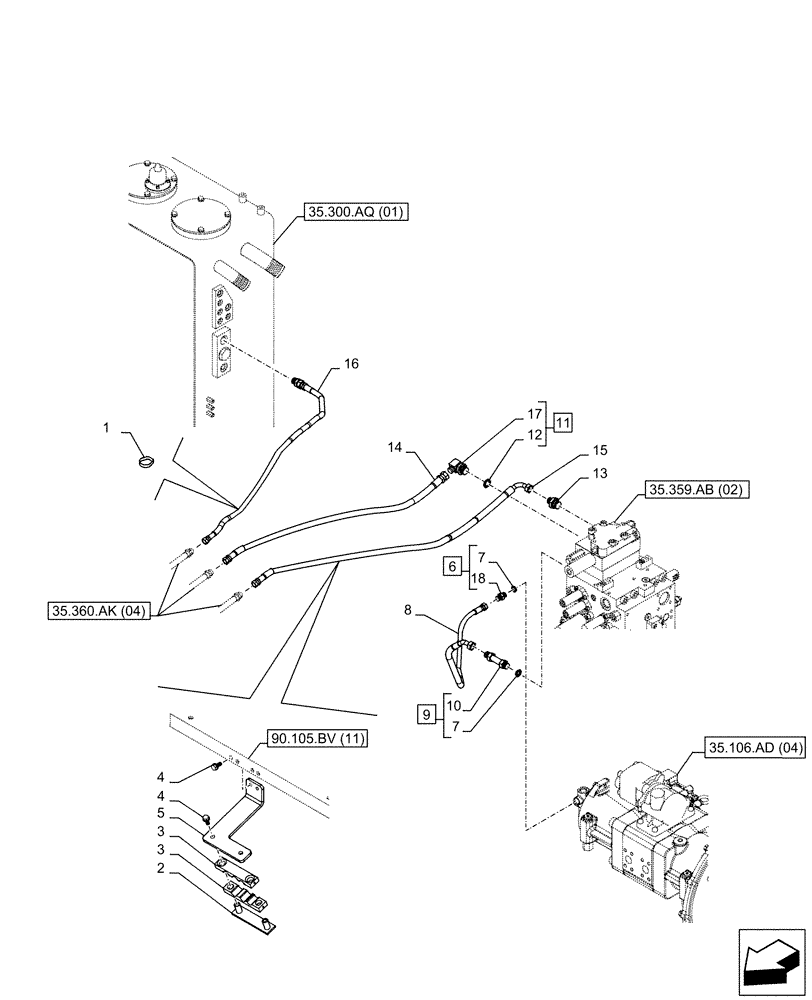

Схема запчастей Case CX250D LC - (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.300.aq (01)
14
11
2
7
16
9
18
12
3
5
15
8
4
4
6
10
17
7
13
3
1
35.359.ab (02)
35.360.ak (04)
35.106.ad (04)
90.105.bv (11)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150496A1

MOUNTING CLIP

4шт.

2

KRJ11590

SUPPORT

1шт.

3

KRJ11580

HOSE CLIP

2шт.

4

166052A1

BOLT

4шт.

5

KBJ19730

BRACKET

1шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 7 (Qty 1), 18

1шт.

7

154487A1

O-RING

2шт.

8

KBJ22790

HYDRAULIC HOSE

1шт.

9

KAJ2432

ADAPTER

ASSY, Incl 7 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

157936A1

ELBOW

ASSY, Incl 17, 12

1шт.

12

154503A1

O-RING

1шт.

13

168988A1

ADAPTER

1шт.

14

KBJ19690

HYDRAULIC HOSE

1шт.

15

KBJ19700

HYDRAULIC HOSE

1шт.

16

KBJ22590

HYDRAULIC HOSE

1шт.

17

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.
